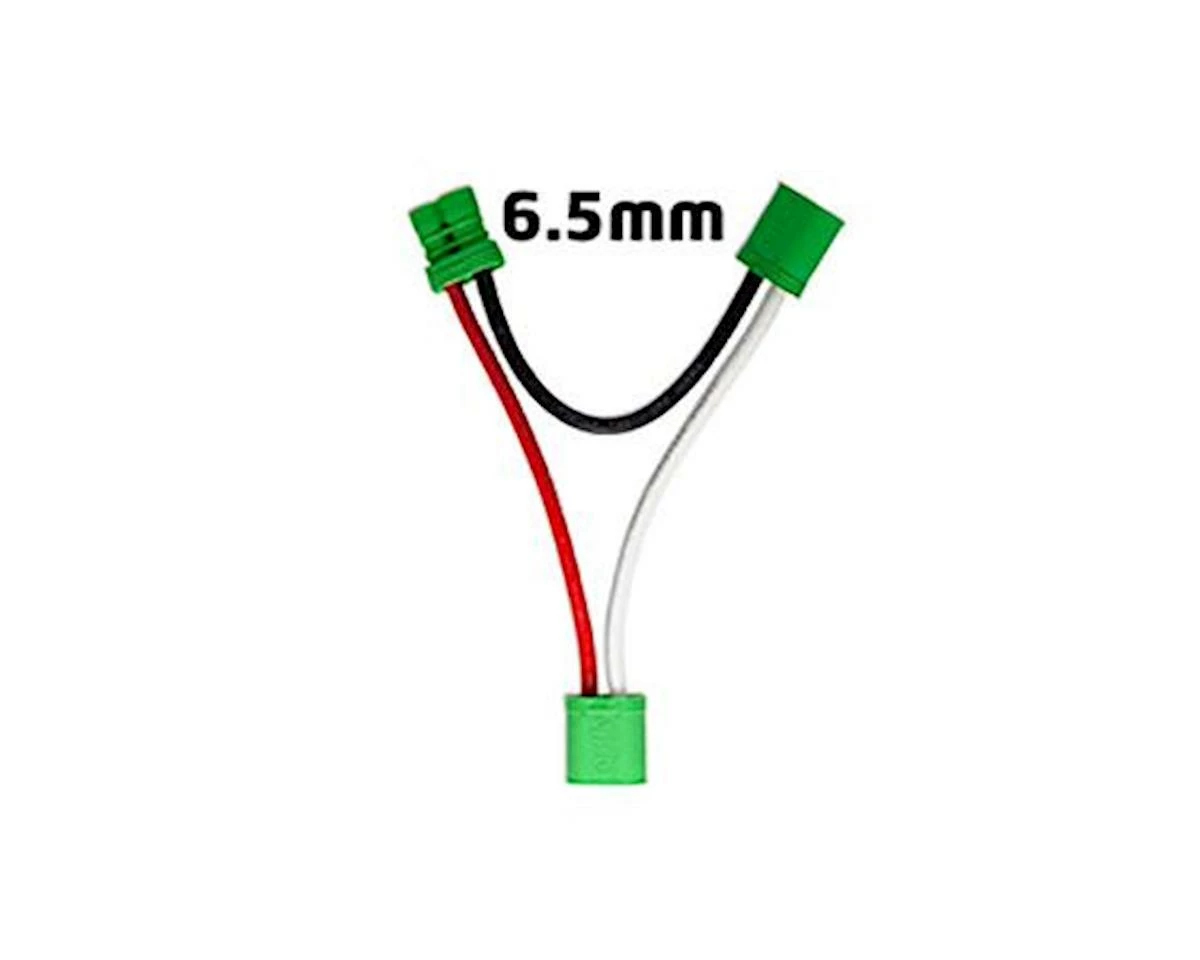

Castle Creations 6.5mm Polarized Series Wire Harness

Original price was: $23.99.Current price is: $14.39.

SKU: 640843 Categories: Adapters, Airplanes, Batteries Tag: Castle Creations

Shop with ease, buy with confidence.
Best price, safe shopping guarantee
Unbeatable Quality, Unbeatable Value
Experience the Best Quality

Description
Reviews (0)

The Castle Creations 6.5mm Polarized Series Wire Harness allows you to connect two battery packs in series, combining the voltage of your batteries. For example: two 3S (11.1v) packs will have the output voltage of 6S (22.2v) when connected with this harness.

This harness is factory-fitted with 6.5mm Polarized Castle Connectors. You will need a matching polarized male connector soldered to your ESC and matching polarized female connectors soldered to your batteries.

Features:

Side ridges on the housing to make them easier to grip
Marked for “Battery” and “ESC” for easy reference

NOTE: Always ensure that your ESC and motor are capable of handling the combined voltage of both batteries. You must always use identically prepared packs with this harness. Both packs must be fully charged and properly balanced. Both packs must be by the same manufacturer, have the same C ratings, and both must have the same capacity and level of charge at all times. Failure to observe this warning will result in damage to your batteries and/or ESC. Castle Creations is not responsible for any damage as a result of misuse of this product.

Specifications:

Connector Size: 6.5mm

Wire gauge: 10AWG

Connector to connector wire length: 5″ (127mm)

Overall length: 6.75″ (171mm)

Weight: 2.01 oz. (57g)

This product was added to our catalog on February 12, 2019
