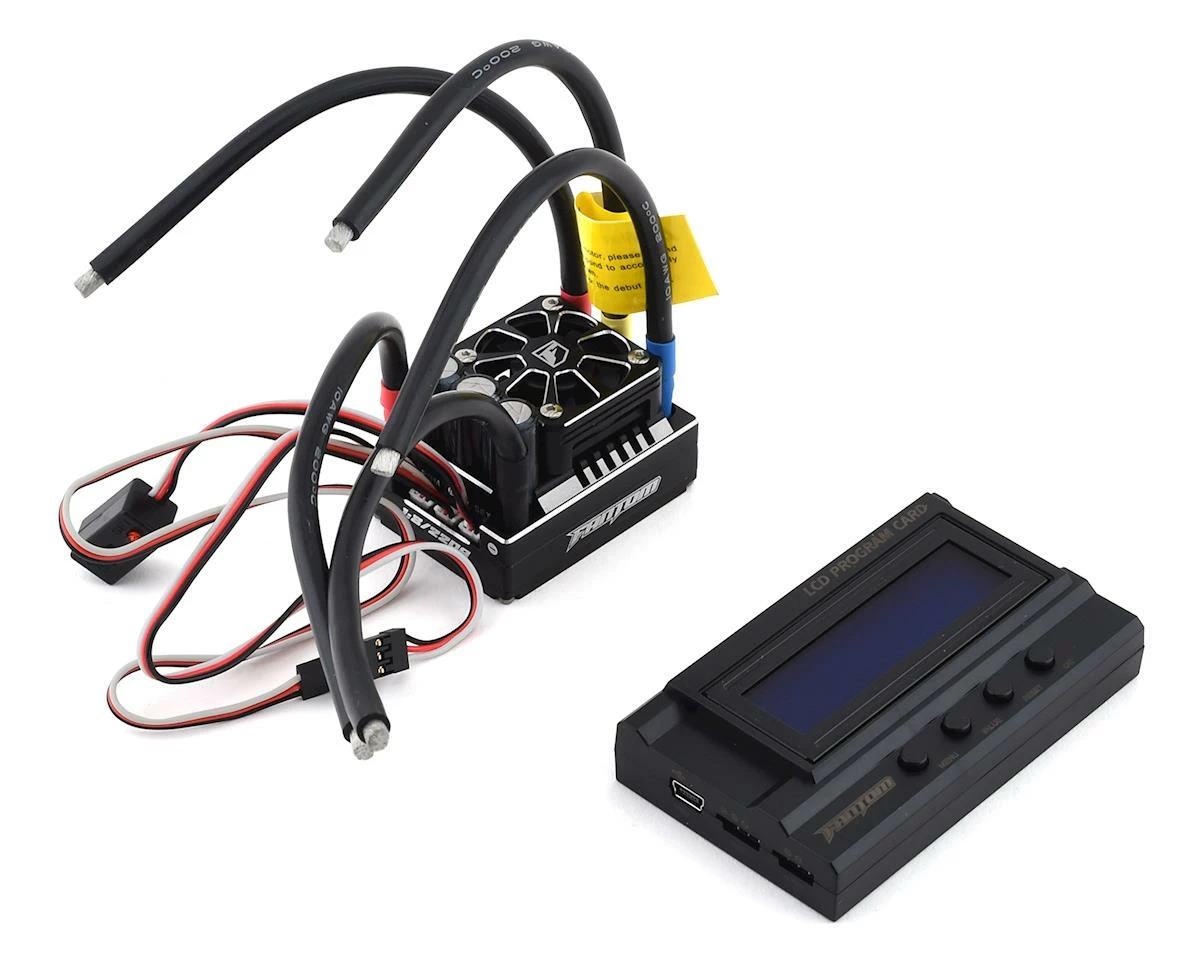

Fantom FR-8 Pro 1/8 Competition Sensored Brushless ESC w/Program Card

The Fantom FR-8 Pro 1/8 Competition Sensored Brushless ESC & Program Card was developed by people who live, breath, eat and sleep R/C racing, with a goal to provide an edge over their competition. Countless hours have gone into R&D, to bring you a professional racing ESC, second to none in performance and value! The heart of the FR-8 PRO is the high-performance 32-bit CPU and proprietary firmware, providing you with buttery smooth throttle response, unmatched power delivery, and all the adjustable parameters you expect from a competition level ESC!

• ESC:
• All R&D Done in the USA
• 1:8 Scale / 3-6 Cell / 220 Amp
• Specifically designed for the highest level of spec and mod racing
• 10awg, Ultra Low Resistance Wire
• CNC Machined Aluminum Case w/ Integrated Heat Sink
• 32-bit high-performance CPU
• Ultra-Low Resistance FET Board
• 3 Integrated Max Power Capacitors
• Heavy-Duty Solder Posts
• Precision Throttle & Brake Frequency Adjustment
• 34mm Fan w/ Aluminum Fan Cover
• Ultra Precision Throttle, Brake, and Punch Control
• Firmware Updateable with Fantom LCD Program Card
• Programmable with LCD Program Card (included)
• ROAR Approval Pending
• Program Card:
• Designed specifically for the Fantom FR-8 PRO electronic speed control.
• Use as a stand-alone device to set the parameters of the FR-8 PRO ESC.
• Use with a PC to update the firmware of the FR-8 PRO ESC and/or to set the parameters of the FR-8 PRO ESC on a PC.

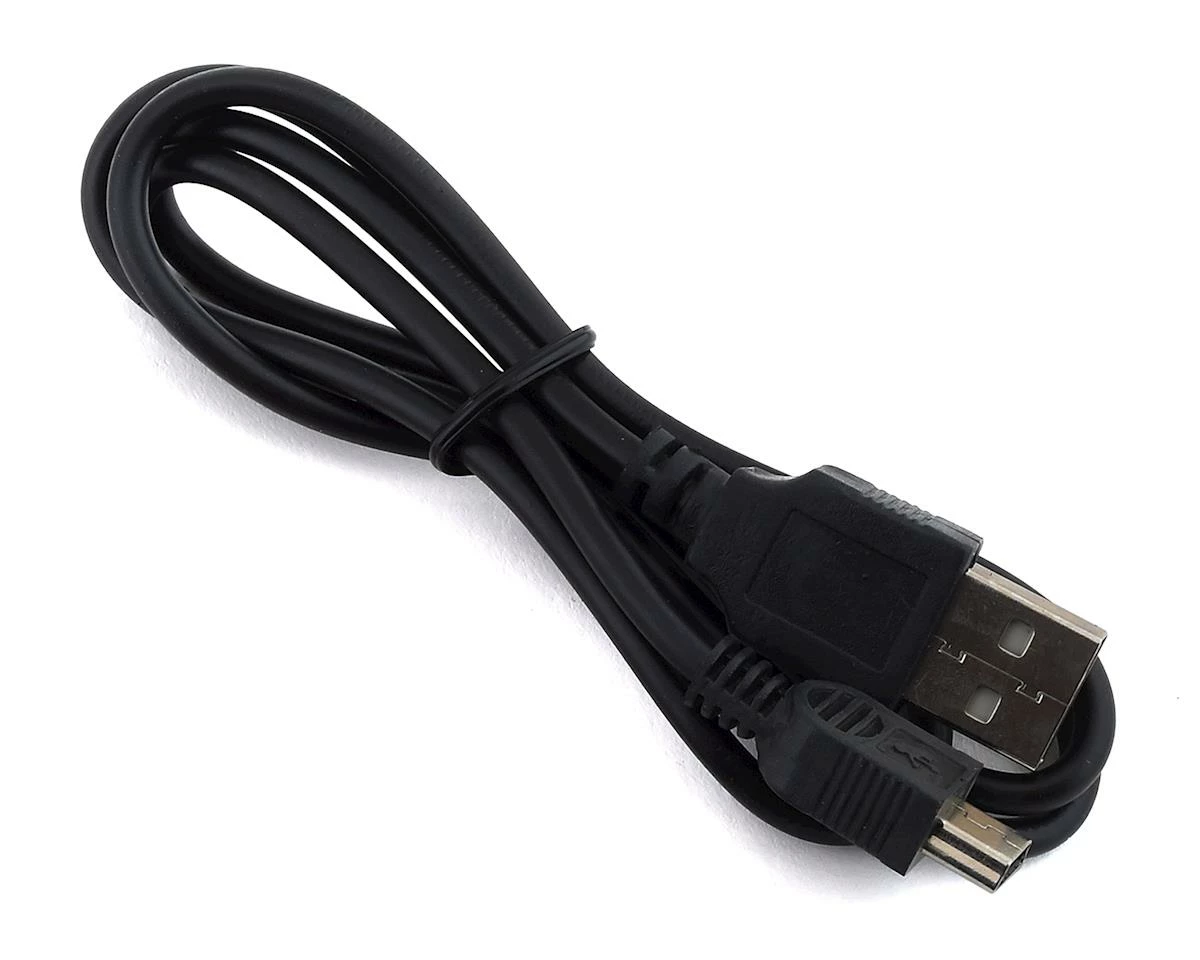

• Includes all required cables.

PROGRAMMABLE PARAMETERS:

• GENERAL:
• RUNNING MODE – Forward/Brake, Forward/Brake/Reverse, Forward/Reverse
• LOW VOLTAGE CUTOFF – Disable, Auto, custom 3.0v to 11.1v (0.1v increments)
• ESC OVER-HEAT PROTECTION – Disable, 3 steps
• MOTOR ROTATION – Normal, Reverse
• DEADBAND – 12 steps
• BEC OUTPUT – 6v, 7.4v
• THROTTLE:
• INITIAL POWER LIMITER – 30 steps
• THROTTLE RATE – 30 steps
• DRIVE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• RPM LOCK – 1% to 100% (1% increments)
• THROTTLE CURVE – Linear, Custom
• BRAKE:
• INITIAL BRAKE – 1% to 20% (1% increments)
• DRAG BRAKE – 0% to 100% (1% increments)
• BRAKE FORCE – 0% to 100% (12.5% increments)
• INITIAL BRAKE RESPONSE – 20 steps
• BRAKE RATE – 20 steps
• BRAKE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• BRAKE CURVE – Linear, Custom
• BOOST:
• BOOST TIMING – 0° to 64° (1° increment)
• BOOST TRIGGER LEVEL – 50 steps
• BOOST TRIGGER RATE – 10 steps
• TURBO:
• TURBO TIMING – 0° to 64° (1° increment)
• START RPM – 8,000 RPM to 50,000 RPM (1000 RPM increments)
• TURBO DELAY – Instant, 0.05 seconds to 1 second (.05 second increments)
• ACTIVATION METHOD – Full Throttle, RPM, Full Throttle + RPM
• TURBO ON RATE – 10 steps
• TURBO OFF RATE – Instant, 10 steps
• DATA:
• MINIMUM BATTERY VOLTAGE
• MAX ESC TEMP
• MAX MOTOR RPM

Continuous Current: 220 Amps

Battery Input: 3-6 cell LiPo

BEC Output: Linear 6V or 7.4V Adjustable / 8 Amps

Dimensions without fan: (L) 55mm x (W) 40mm x (H) 34mm

Weight without wiring and fan: 160 grams

Sensored: Yes

Sensorless: Compatible but not optimal

Motor Limit: 4S LiPo/ 12cell NiMH: 3000KV for 4274 size, 6S LiPo/ 18cell NiMH: 2400KV for 4274 size

• FR-8 PRO ESC
• Program Card
• 34mm Fan
• Machined Aluminum Fan Cover
• (2) 165mm Input Wires – 10awg, Ultra-Low Resistance Wire (pre-soldered on ESC)
• (3) 165mm Output Wires – 10awg, Ultra-Low Resistance Wire (pre-soldered on ESC)
• (3) Integrated Max Power Capacitors
• Shrink Tube w/ Fantom logo
