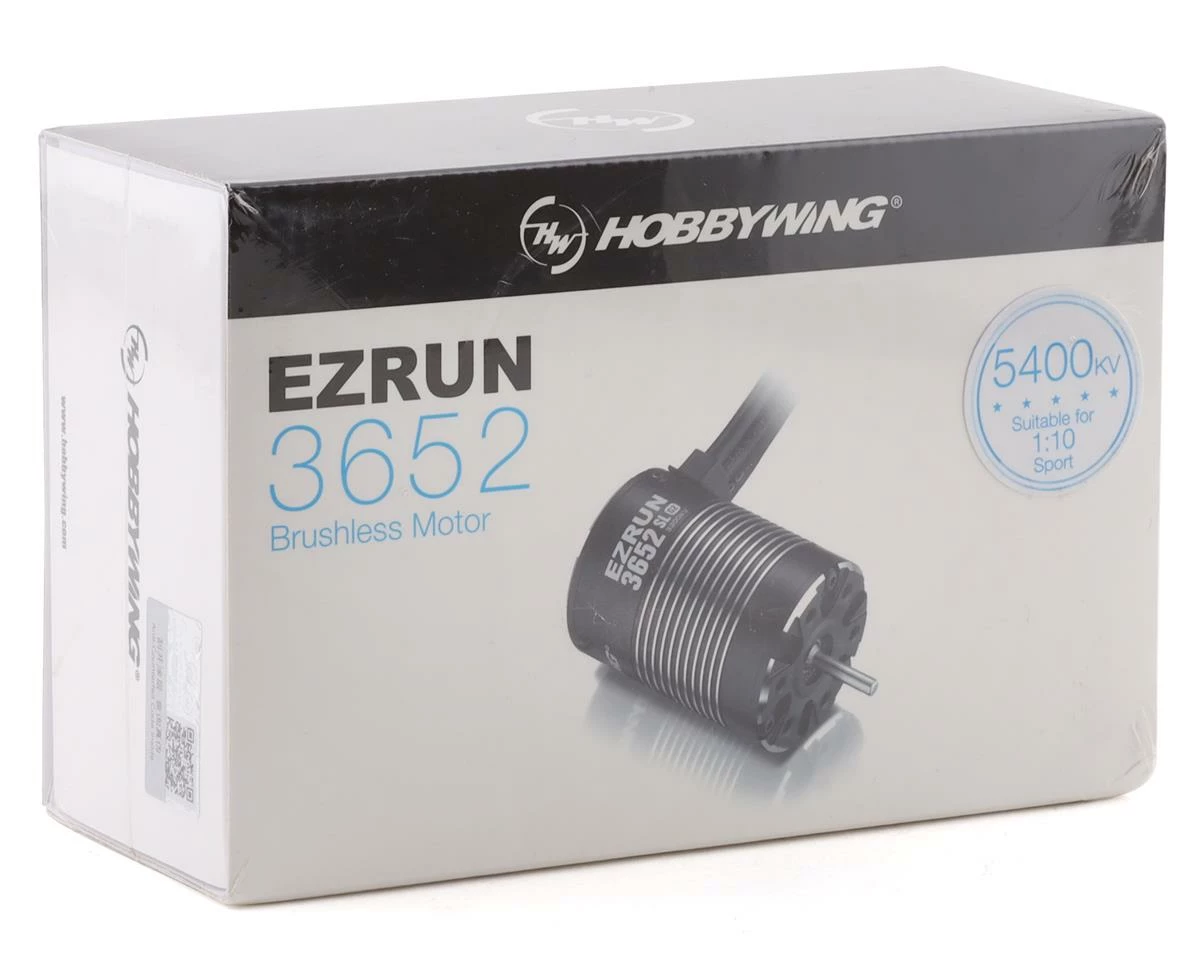

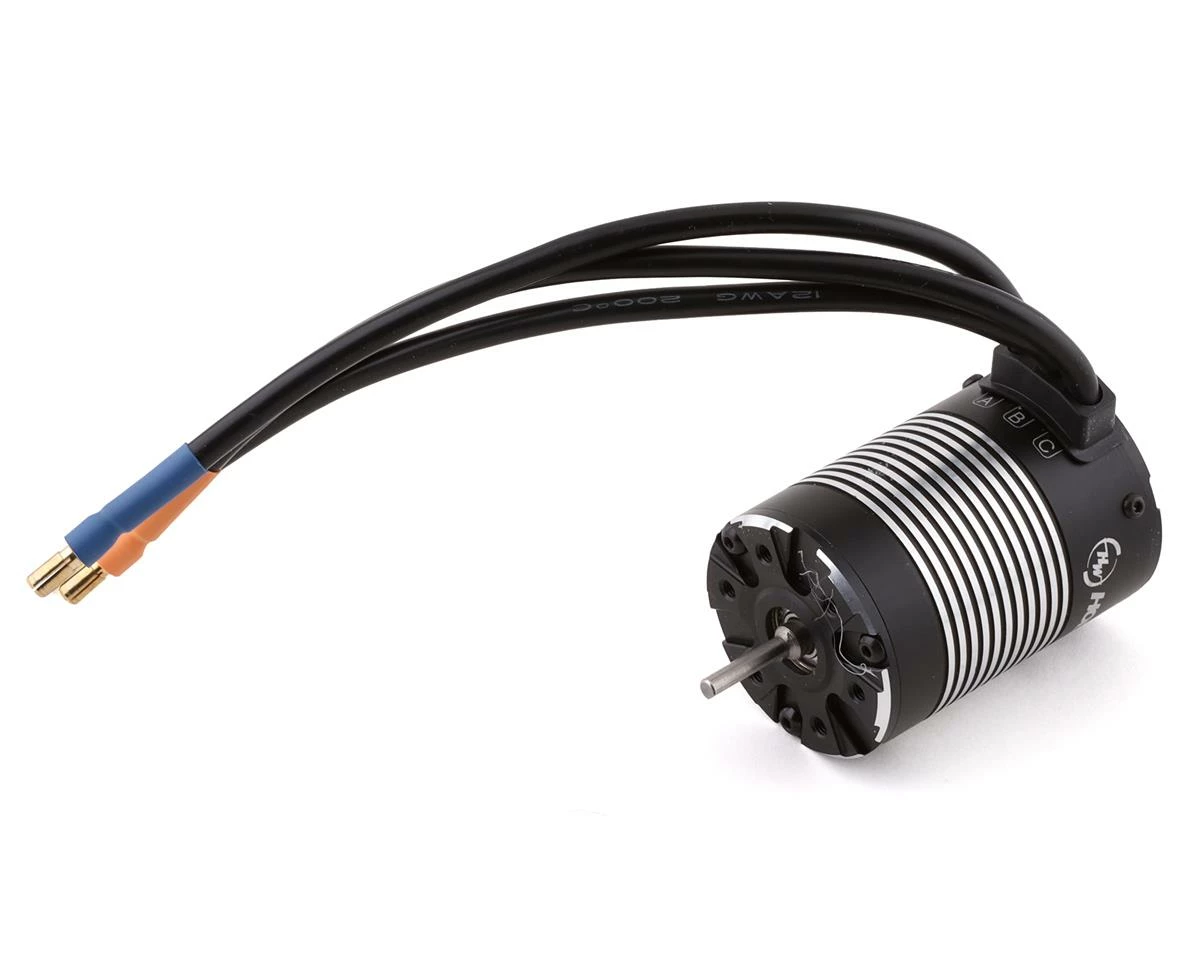

Hobbywing Ezrun 3652SL G2 Sensorless Brushless Motor (5400KV)

Hobbywing Ezrun 3652SL G2 Sensorless Brushless Motor (5400KV) - Image 2

Hobbywing Ezrun 3652SL G2 Sensorless Brushless Motor (5400KV) - Image 3

Hobbywing Ezrun 3652SL G2 Sensorless Brushless Motor (5400KV)

Original price was: $58.99.Current price is: $35.39.

SKU: 713278 Categories: 1/10 scale, Electric motors, Electric motors & esc's, Electronics Tag: Hobbywing

Shop with ease, buy with confidence.
Best price, safe shopping guarantee
Unbeatable Quality, Unbeatable Value
Experience the Best Quality

Description
Reviews (0)

Hobbywing Ezrun 3652SL G2 5400KV Sensorless Brushless Motor.

Features:

Innovative 4-pole-8-magnet “staggered pole” rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3652 G2 with a EZRUN MAX10 SCT ESC.
O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
Excellent match between EZRUN 3652 G2 with EZRUN MAX10 SCT guarantees users large torque plus a very smooth and linear power band.

Specifications:

KV: 5400

LiPo: 2S

Resistance: 0.0053

No-load Current: 7.2A

Timing (deg.): 0

Motor Diameter & Length: D=36 / L=52

Shaft Diameter & Length: D=3.17 / L=18.5

Pole: 4

Weight: 217g

This product was added to our catalog on April 13, 2021
