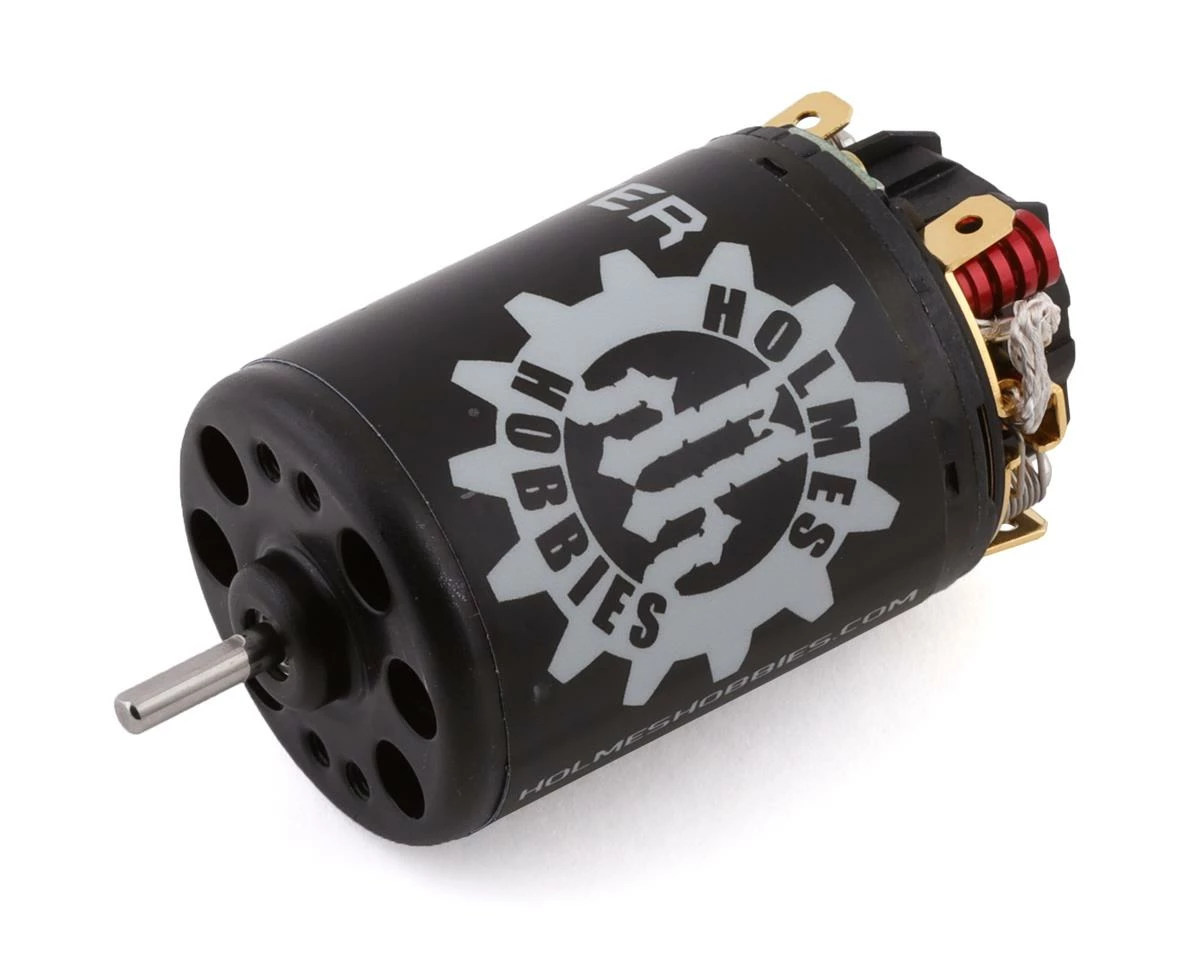

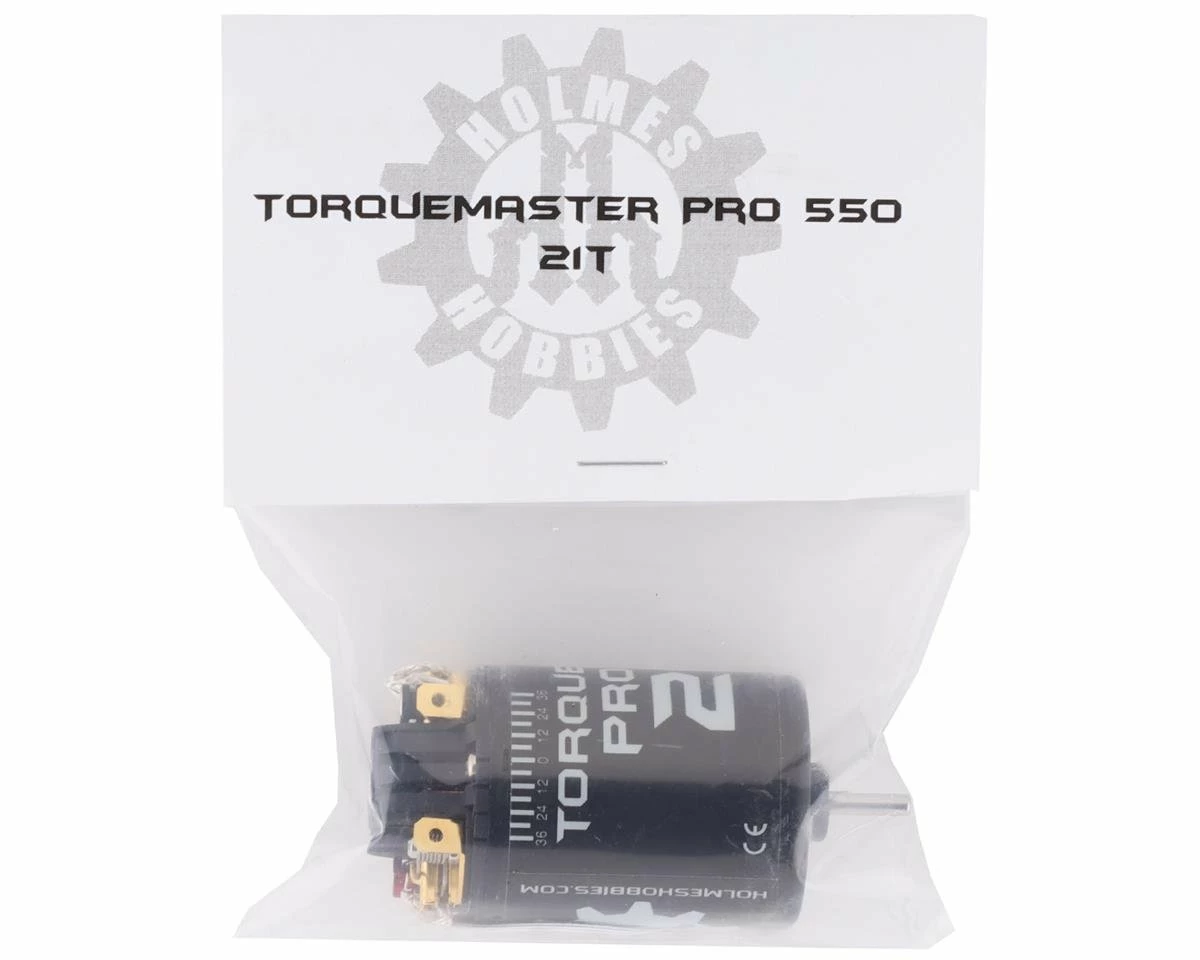

Holmes Hobbies TorqueMaster Pro 550 Brushed Electric Motor (21T)

The Holmes Hobbies TorqueMaster Pro 550 Brushed Electric Motor offers fantastic torque with extremely smooth startup to create a well rounded motor for your Rock Crawler.

Features:

• 550 size provides extra torque and power
• Hand wound at Holmes Hobbies for highest performance
• 5mm web 3 slot armature- Maximizes torque, efficiency, and offers smooth startup
• Epoxy balanced armature ensures maximum torque, efficiency, and startup smoothness
• Silver brazed commutator connections allow higher temperature operation
• Vacuum dipped armatures withstand high RPM’s without failure
• Gold-plated copper brush hoods to resist corrosion and provide lowest resistance
• Aluminum heatsinks shed heat
• Filter PCB reduces EMF noise
• Brush damper reduces noise and arcing
• Can – 1.4mm thick uninterrupted back iron
• High-power FB12 ceramic wet magnets maximize torque and efficiency
• Dual Japanese Ball bearings
• Adjustable timing
• Holmes XX springs for consistent drag brake
• Holmes Soft Copper brushes for high torque and longest motor life
• Broken in for immediate installation and use

Specification:
Turn: 21 turn three slot
RPM: 27,250 @12v & 12 degrees timing
Weight: 216 grams
Size: 36mm OD x 60 length (not including shaft)
Shaft: 1/8″ D shaft
Mounting Pattern: 1″ (25.4mm) for M3 screws
Input Voltage: 6-9 cell nimh, 2-3s Lithium
Rotor: 23mm OD x 29mm
