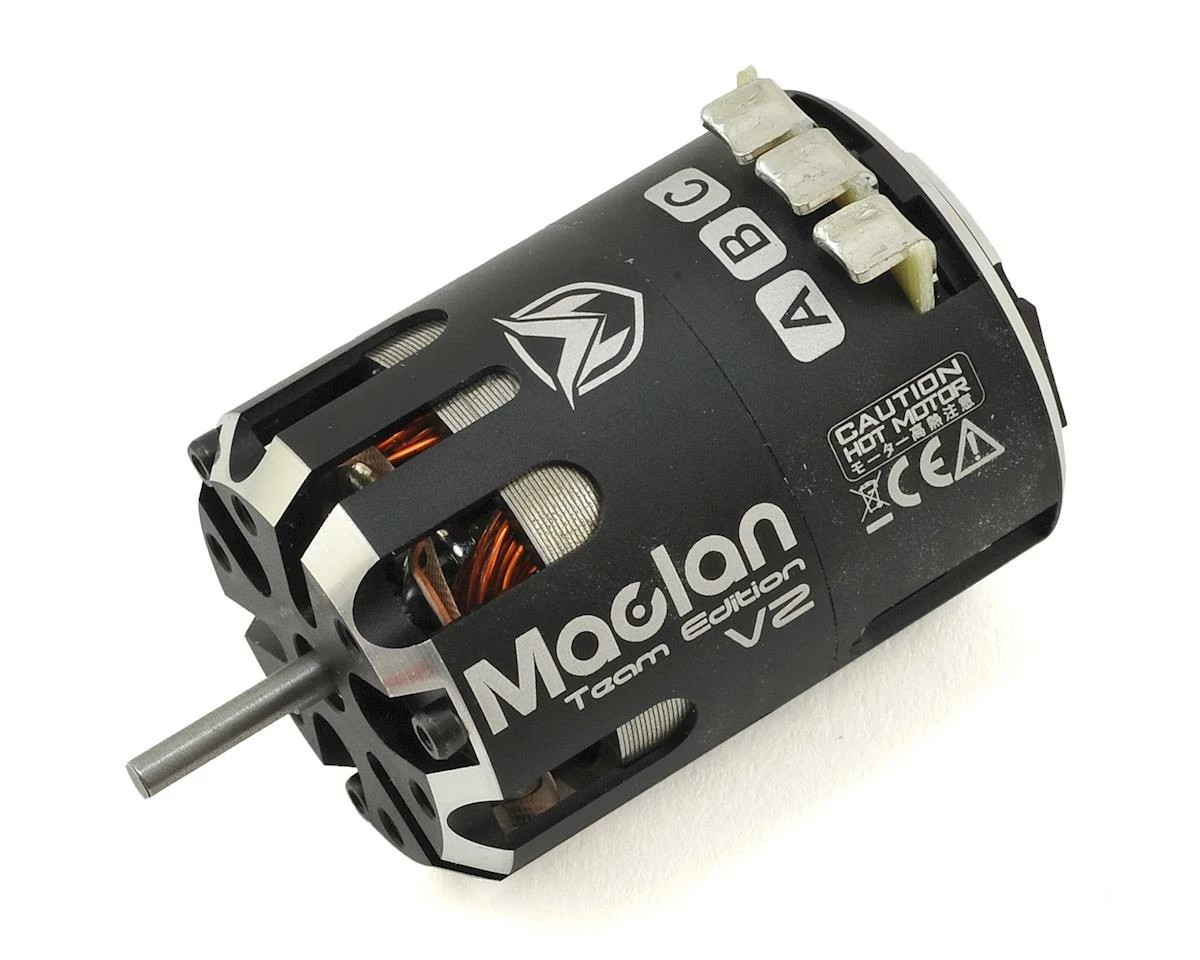

Maclan MRR Team Edition V2 Competition Sensored Brushless Motor (21.5T)

The Maclan 21.5 Turn MRR Team Edition V2 was developed to push stock racing to the next level. Based on the successful MRR Team Edition, the Team Edition V2 has been completely redesigned for today’s competitive stock class racing. From motor case structure and stator shape, to rotor and sensor unit, everything was redesigned for maximum performance potential.

Redesigned Stator with 100% Hand Winding Custom Wires
The Team Edition V2 has a redesigned stator shape in order to produce maximum horsepower. With custom-made copper wires and premium steel material in the stator, it provides maximum power with noticeable lower temperatures in extreme racing conditions.

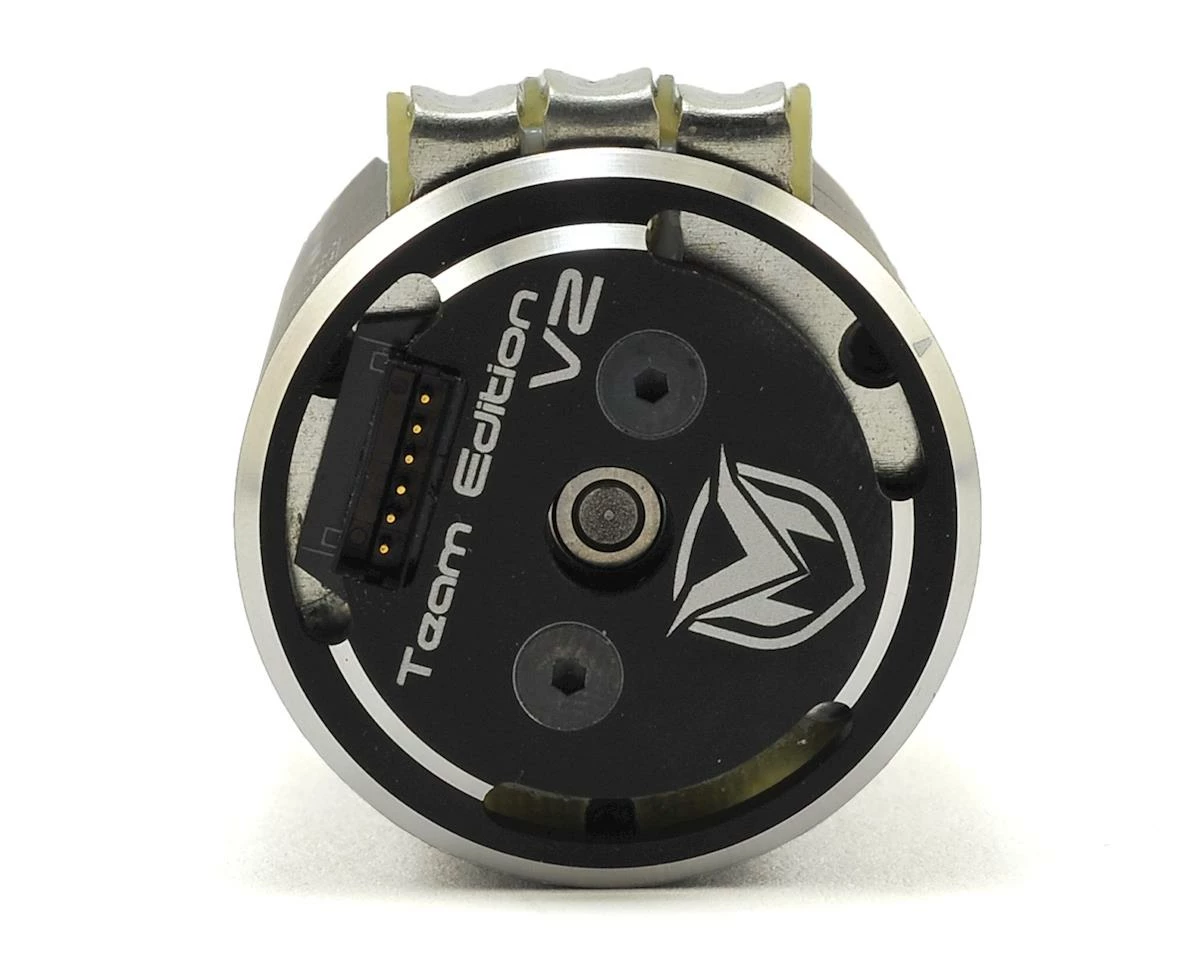

Redesigned Sensor Unit & Rotor Alignment
The redesigned sensor unit improves the already impressive MRR sensor deviation accuracy. The updated rotor alignment method allows the sensors to be placed even closer to the rotor. The rotor has also been perfectly centered within the stator for maximum efficiency.

Light Weight Design with Maximum Safe Venting
Compared to the MRR Team Edition, the V2 has a significantly reduced weight, saving 14% (175g vs. 151g). This was achieved using more than large venting holes to protect the stator from foreign debris – the venting and cooling was optimized to maximize durability of the MRR Team Edition V2 motors.

Ultra High Torque Rotor and New Premium Ultra High Torque Rotor Option
The MRR Team Edition V2 comes with an Ultra High Torque (UHT) rotor (MCL4143) as standard equipment. There’s also an optional 12.50mm Premium Ultra High Torque (PUHT) rotor (MCL4144) as an option for your different application or needs.

NOTE: MRR Team Edition V2 rotors are completely redesigned. They are not interchangeable with original MRR & MRR Team Edition rotors.

Features:

• Engineered & Developed right here in the U.S.A.
• 100% Hand Built
• Premium Stator Material (Made in Japan)
• Redesigned stator
• Redesigned case structure
• Redesigned sensor unit design
• Light weigh @150g
• Ultra High Torque standard rotor included
• Optional Premium UHT rotor available (not included)
• Available in 13.5/17.5/21.5
• ROAR Approved

Specifications:
Short Stack: Yes
Case Length: 2.02in/51.50mm
Case Diameter: 1.42in/36mm
Shaft Extension: 0.552in/14mm
Shaft Size: 3.17mm
Weight: 150g ±2g
Poles: 2 Poles
Rotor: 13.5/17.5/21.5 MCL4143 12.50mm Ultra High Torque Rotor (Black)

This product was added to our catalog on October 9, 2017
