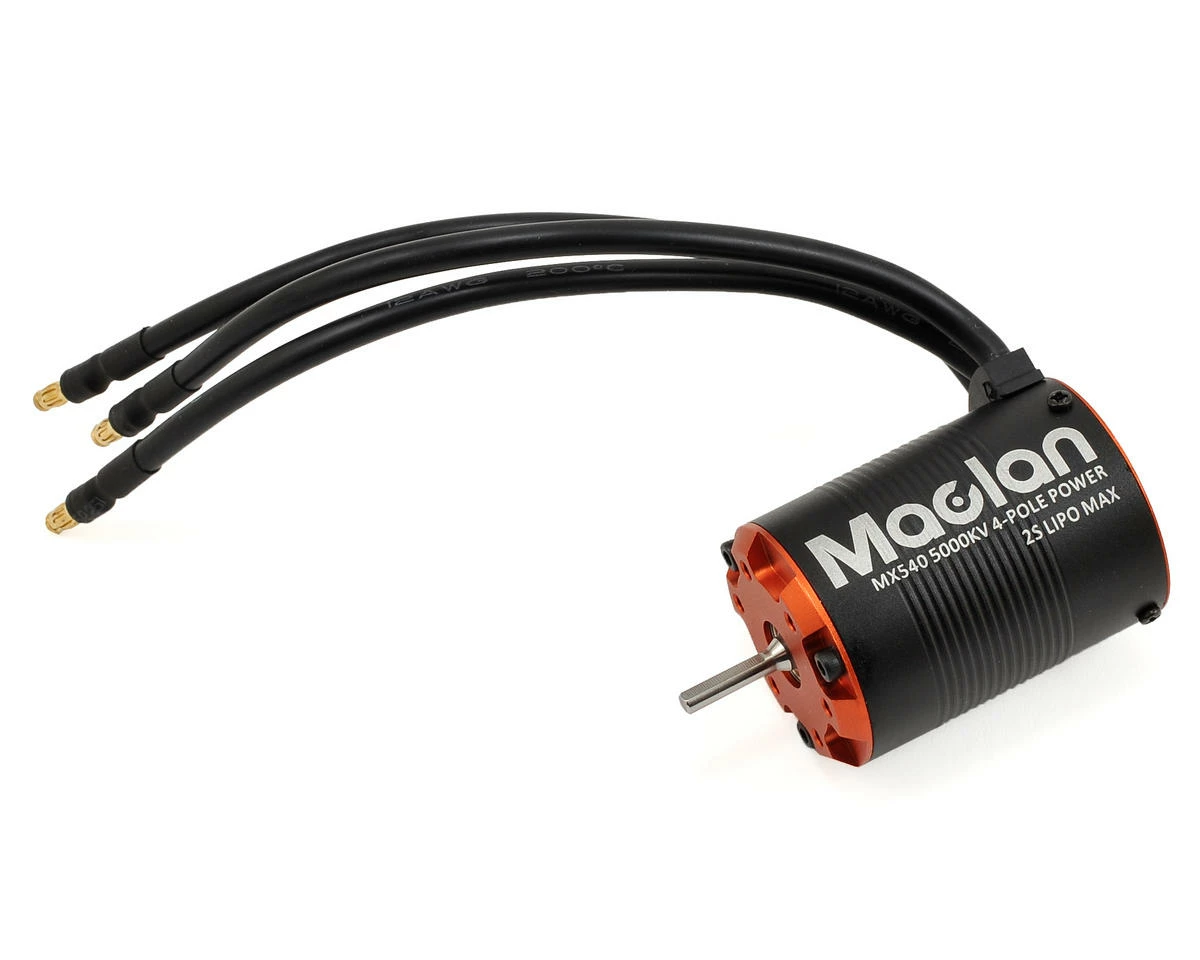

Maclan MX540 4-Pole Sensorless 540 Brushless Motor (5000Kv)

The Maclan Diamondback MX540 5,000Kv 4-Pole Sensorless 540 Brushless Motor delivers 4-pole performance and quality, with a friendly price tag for racers and bashers. 4-pole technology brings mega torque to all 1/10 applications, and 4000KV/5000KV options are available to give all 1/10 2wd applications another option for a high power upgrade.

Features:

• 12-Slot/4-Pole design with mega torque
• All aluminum structure for maximum thermal dissipation and long term durability
• Premium material  for maximum performance
• Rebuildable design with all spare parts available separately
• 36mm x 50mm 540 class motor with 3.17mm motor shaft

Specifications:
KV: 5000KV
Case Length: 50mm/1.97in
Case Diameter: 36mm/1.42in
Shaft Extension: 14.8mm/0.58in
Shaft Diameter: 3.17mm/ 0.12in
Weight: 170g/5.9oz ±3g
Poles: 4 Poles
Max Li-Po Cell: [email protected]

This product was added to our catalog on December 11, 2015
