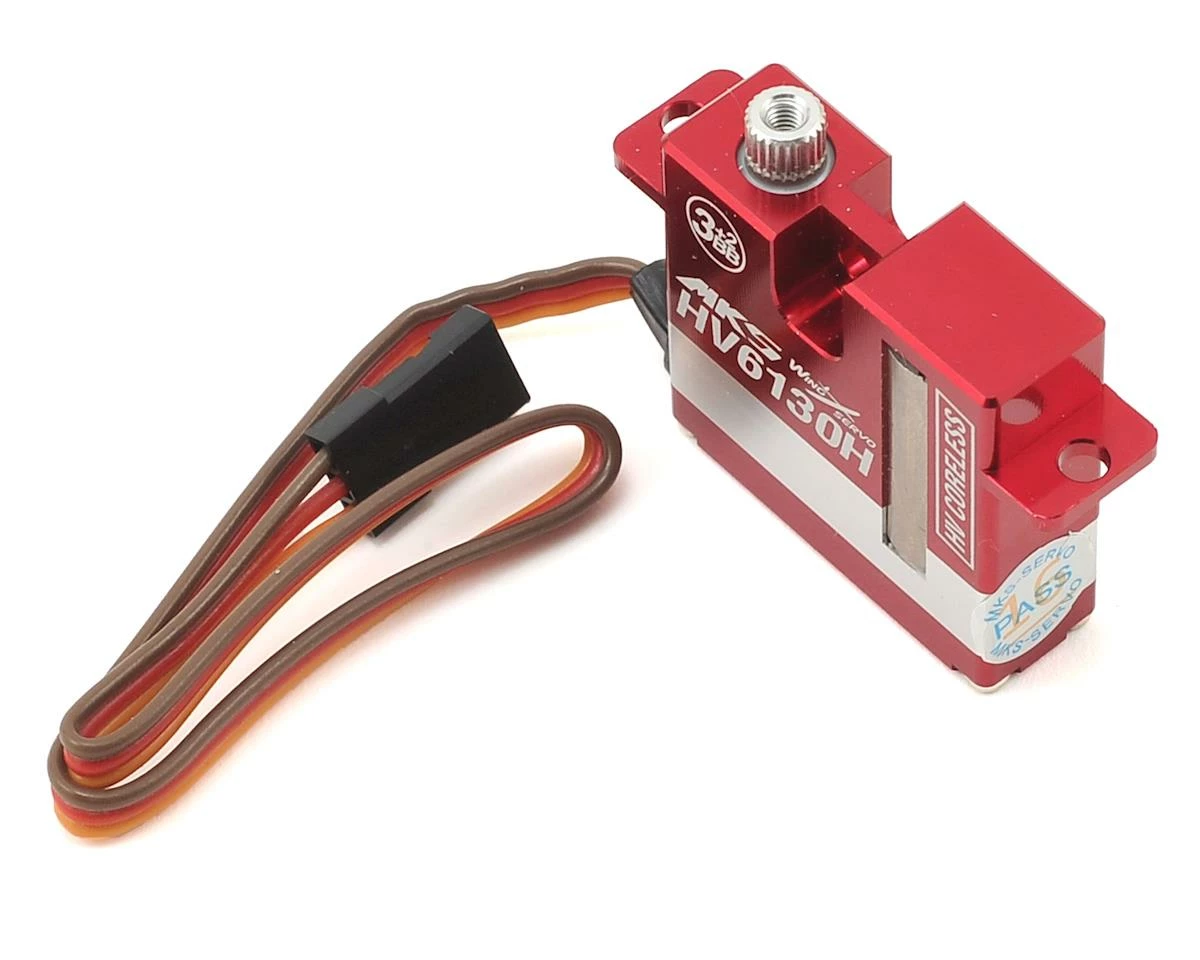

MKS Servos HV6130H Coreless Metal Gear Digital Wing Servo (High Voltage)

This is the MKS DS6130H Metal Gear High Torque Glider Wing Servo. This servo features a full aluminum case that provides efficient heat dissipation and a metal alloy gear train for durability. Operating between 6V-8.4V, the 6130 series offers unparalleled performance within it’s class. Plus, with all that metal, you would expect this servo to be on the heavy side, but at a scant 23 grams, this servo is feather light when compared to other servos with similar features making it an ideal choice for a glider wing servo applications when precision, durability and speed are required.

Features:

• Super thin all metal servo
• 10mm thickness designed for gliders
• Metal alloy gears
• All aluminum case
• Efficient heat dissipation

DS6130H Specifications:
Dead band: 0.001ms (Default)
Control System: +Pulse Width Control
Working frequency: 1520μs / 333hz
Operating Voltage: 3.5~8.4V DC Volt (2s LiPo)
Speed: 0.14/0.11/0.1 @ 6V/7.4V/8.4V
Torque: 83/105.5/12.5 oz/in @ 6V/7.4V/8.4V
Motor Type: Coreless Motor
Potentiometer Drive: Direct Drive
Bearing Type: 3x Ball Bearings & 2x Jewel Bearings
Gear Type: Metal alloy gear
Dimensions: 30x10x29.9mm (1.18×0.39×1.17″)
Weight: 23g (0.81oz)

This product was added to our catalog on February 14, 2017
