Motiv M-CODE “MC4” Pro Tuned Modified Brushless Motor (4.0T)

This is the Motiv 4.0 Turn M-CODE “MC4” Pro Tuned Modified Brushless Motor. Every MOTIV Motor is hand checked, assembled and packaged by a professional in house at their WI, USA office. During this process, every motor component must meet MOTIV requirements before assembly and packaging. Included is a specification check list which is filled out on a motor to motor basis all through the testing and assembly process to ensure the quality of the finished product.

• Stator:
• Specially selected stator material for low power loss
• High quality pure copper wire
• Emphasis on hand winding for consistency
• Solder Tabs:
• Gold plated pure copper tabs for low resistance
• Internal “Drop Connection” design to ensure low resistance and consistent internal solder joints
• Rotor:
• Sintered rotor
• High quality neodymium magnet material for lasting magnetism
• Can Assembly:
• High flow vent holes to allow air flow in and out for lower operating temps
• Machined all aluminum anodized can, front plate and end bell
• Infinitely adjustable timing
• Dual precision ball bearings
• Overall:
• Every motor tested in house during the assembly and packaging process
• Spec/test sheet provided uniquely for every motor to ensure quality
• Designed to comply with ROAR specifications
• Lightweight completed design

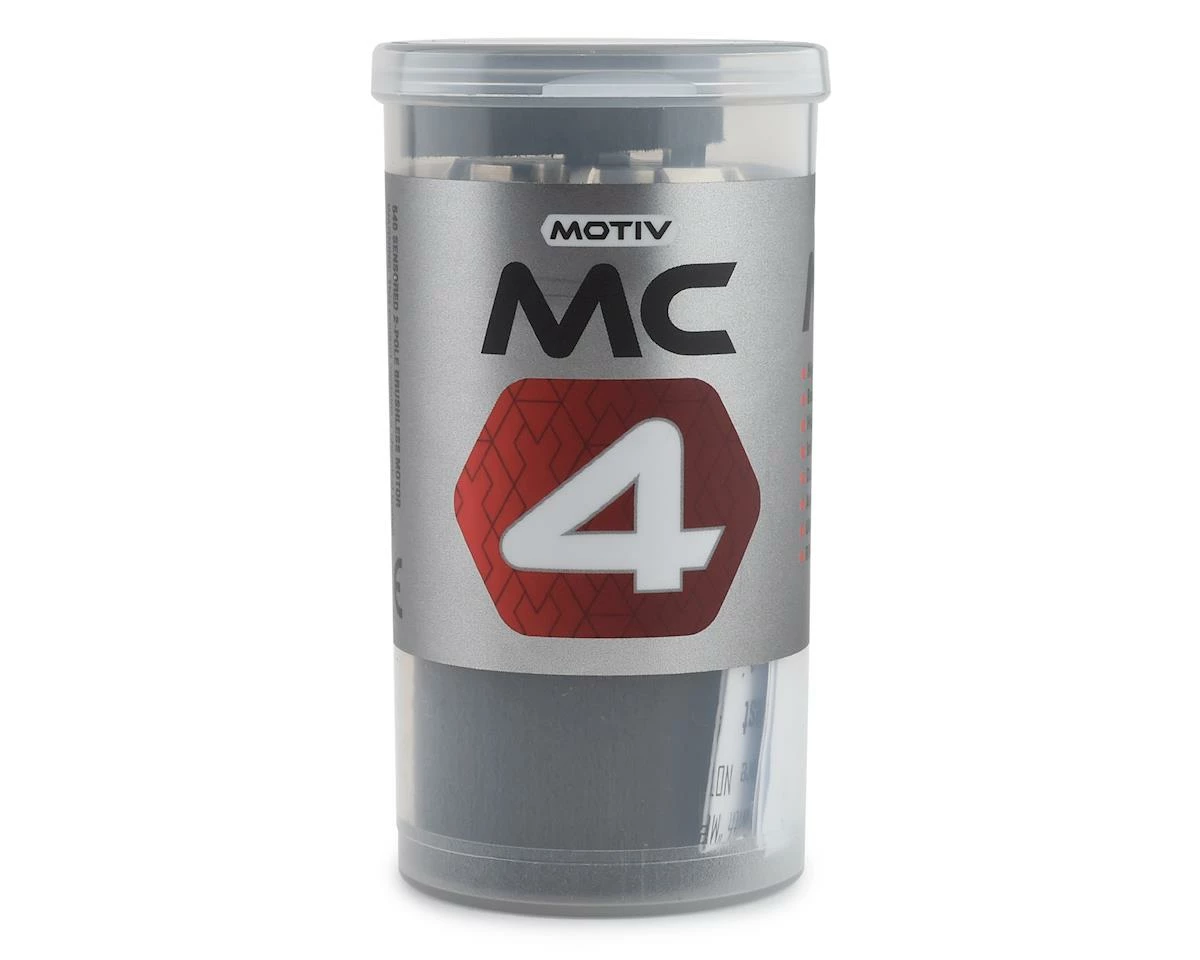

• Packaged in reusable cushioned storage container
