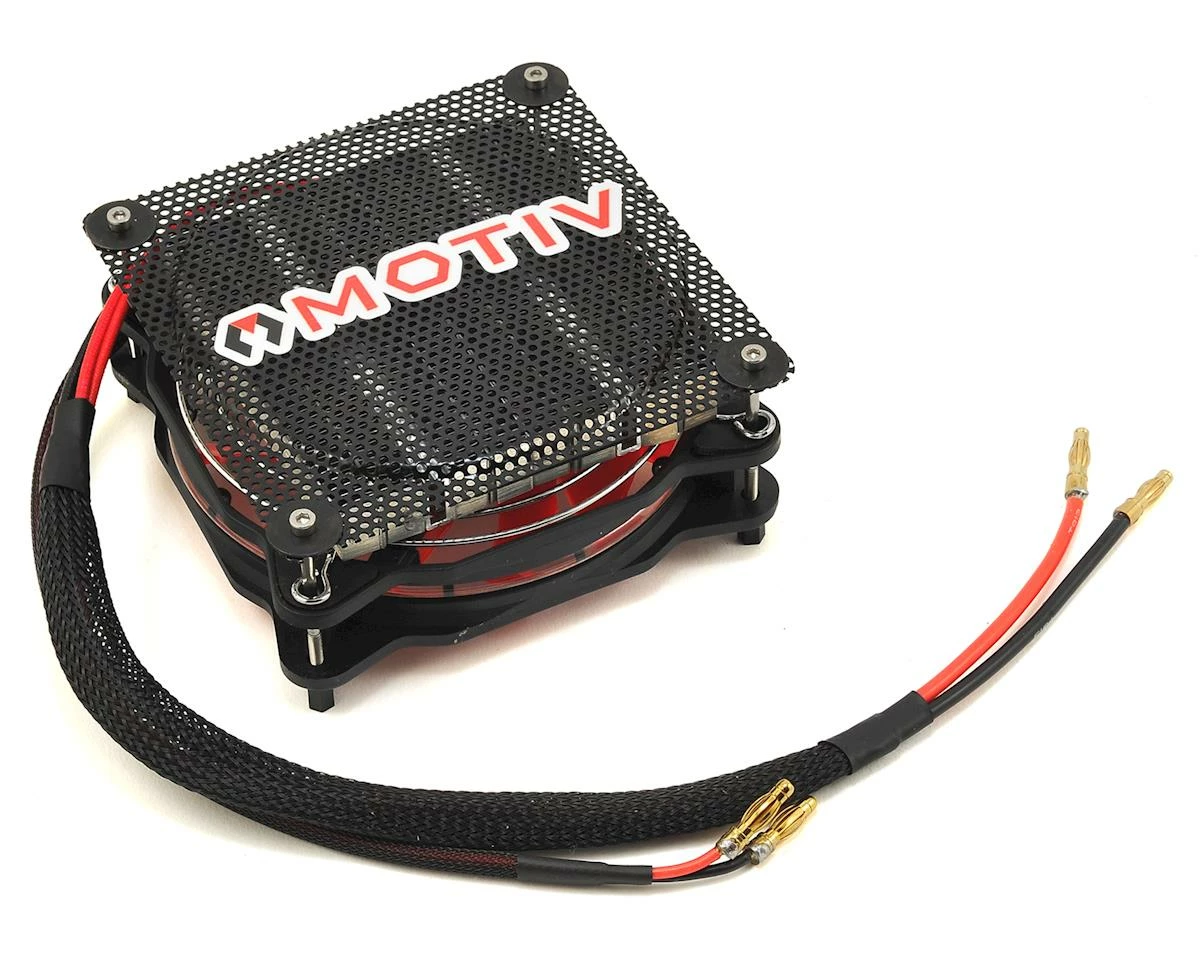

Motiv PRO 40 Amp LiPo Discharger (Junsi iCharger)

This is the Motiv PRO 40 Amp LiPo Discharge Bank. This unit is assembled in the USA using heavy duty components to withstand temperature’s of 400°F and provide you with the best possible 40A discharge to condition and lower your internal resistance of your 2S Lipo battery for that competitive edge in all forms of electric racing. Compatible with all iCharger models and carries a 90 day manufacturer warranty.

How to use:

1. Connect larger leads to port #2 of your iCharger.
2. Connect the smaller harness to 4mm port on your power supply.
3. Select (discharge) under Program Mode.
4. Select (to channel) Regenerative Mode.
5. Select (SET) button to calibrate charger under (Channel join). iCharger should read (Resistance or Bulbs).
6. Set Voltage limit to 24V.
7. Set Discharge current limit to 40 Amps.

This product was added to our catalog on July 14, 2017
