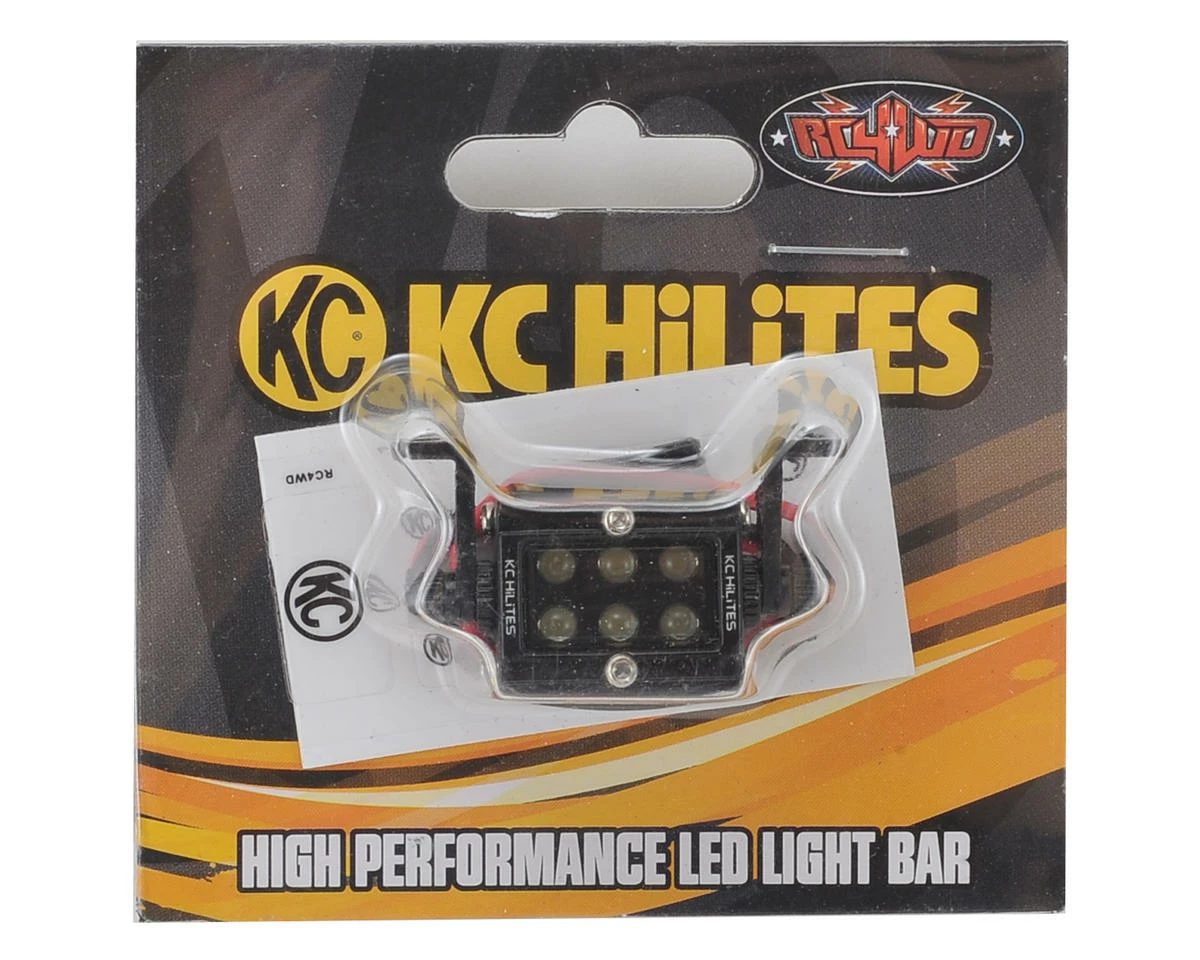

RC4WD 1/10 KC HiLiTES C Series High Performance LED Light Bar (20mm/0.75″)

The RC4WD 1/10 KC HiLiTES C Series High Performance LED Light Bar is an officially licensed 20mm replica of the KC HiLiTES Light Bar. This will make any project look better and add much needed lighting and visibility to your project. Plus, its fully compatible with a standard 2S LiPo, or 11.1V/3S LiPo when used with a BEC.

Features:

• Cast Molded Housing
• Reversible “L” brackets to fit many applications
• Adjustable “L” brackets for rotating light
• 6 Individual LED bulbs per light
• Super Bright Lighting
• Vented on side to dissipate heat
• Works with up to 11.1v lipo with use of a BEC to regulate voltage below 7.4 volts
• Standard Receiver Plug
• 2mm Mounting Holes

Specifications:
Overall Length: 1.41in / 35.9mm
Light Bar Width: 0.78in / 20mm
Overall Height: 0.81in / 20.8mm
Light Bar Height: 0.63in / 16.2mm
Weight: 0.56oz / 16g

Includes:

• (1) RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (20mm/0.75″)
• (2) Light Mounts
• (1) KC HiLiTES Decal Sheet

NOTE:

• Use medium grade thread lock on “L” bracket nut to prevent loss and to keep the light in position.
• Uses 2mm mounting hardware.
• Unit needs to be directly connected to 7.4 volt battery. Can also be connected to 11.1volts with use of BEC.
• The light bar comes with a standard receiver plug, this is only for ease of use. The receiver will not provide enough power for the light bar causing it to be dim. If you want the light to be brighter, you will need to power it directly from your battery or use a BEC to get more power to your receiver.

This product was added to our catalog on June 14, 2016
