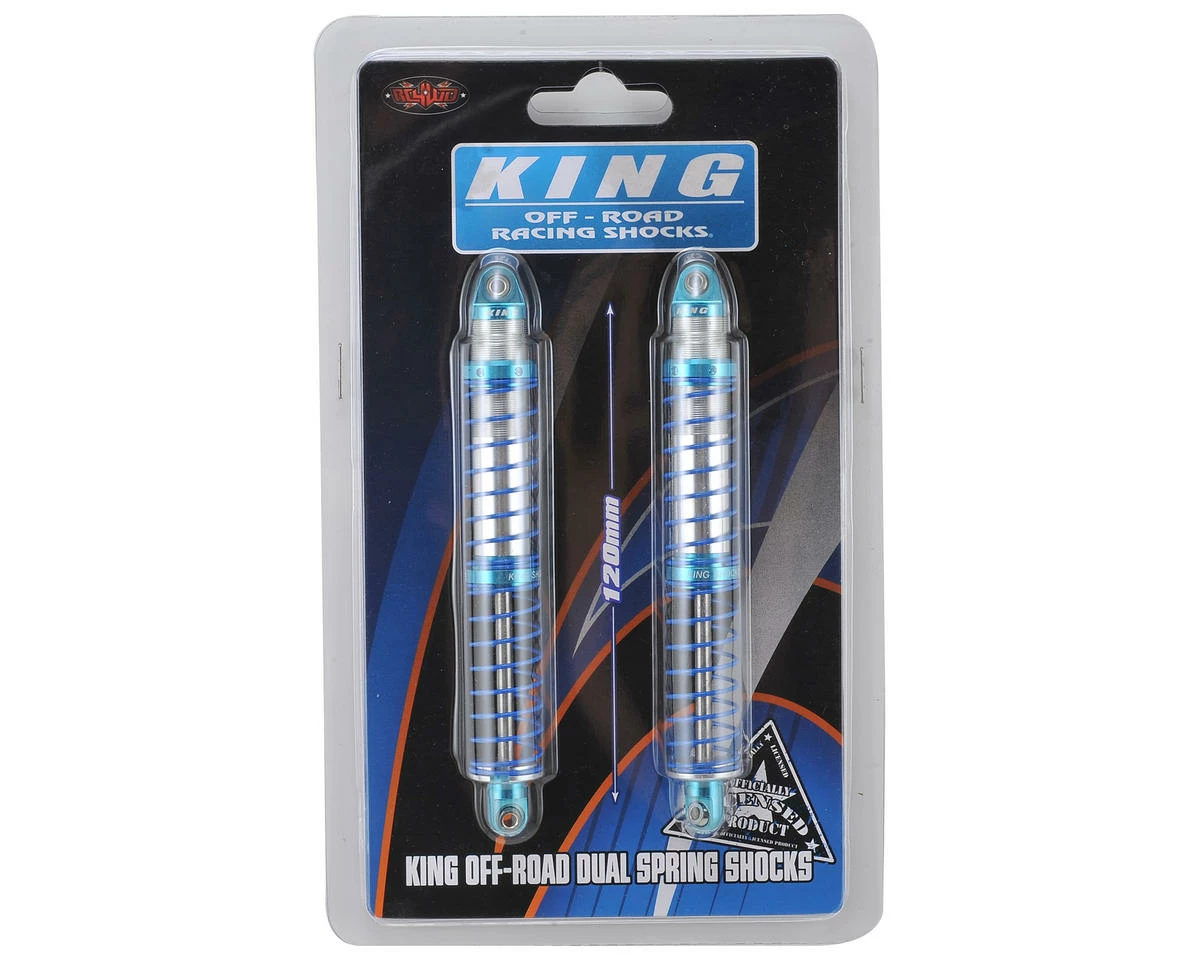

RC4WD King Off-Road Dual Spring Shocks (120mm)

RC4WD 120mm King Off-Road Scale Dual Spring Shocks are fully licensed King replicas. These shocks have been re-designed from the ground up and are pre-built, ready to fill with the oil of your choice. King Shocks are the perfect way to finish off any scale project that uses a 120mm long shock.

Features:

• Machined Billet Aluminum
• King Logo on Top and Retainer Ring
• Dual Spring Design
• Steel Rod End Ball

Specifications:
Ball Width: 0.25in / 6.3mm
Ball Lip Diameter: 0.19in / 4.8mm
Ball ID: 0.12im / 3mm
Hole to Hole (Compressed): 3.15in / 80mm
Hole to Hole (Uncompressed): 4.72in /120mm
Overall Length: 5.09in / 129.3mm
Travel Length: 1.57in / 40mm
Shock Body OD: 0.49in / 12.6mm
Shaft OD: 0.15in / 3.97mm
Spring Body OD: 0.66in / 16.98mm
Spring Body ID: 0.58in / 14.8mm
Each Weight: 1.05oz / 30g

This product was added to our catalog on July 27, 2016
