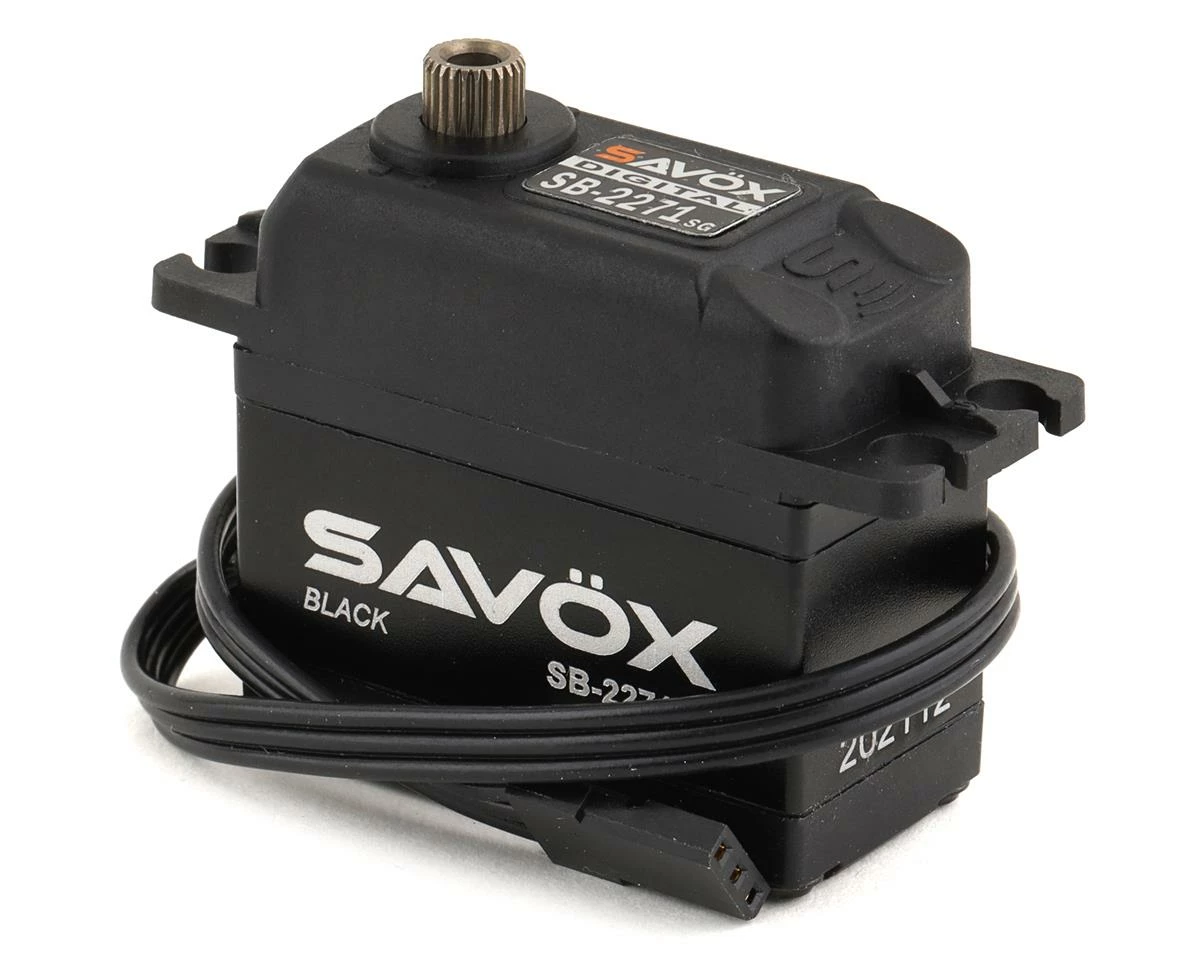

Savox SB-2271SG “High Speed” Black Edition Brushless Steel Gear Digital Servo (High Voltage)

The Savox SB-2271SG “High Speed” Black Edition Brushless Steel Gear Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. This servo is a great option for 1/10 off road, and 450 helicopter applications.

• Unique steel gear train
• Capable of HV operation
• Brushless motor for smooth operation and efficiency
• Ideal for 1/10 buggies and trucks, and some heli applications

• Torque:
• @ 6v: 15.0kg/208.3oz-in
• @ 7.4v: 20.0kg/277.7oz-in
• Speed:
• @ 6v: 0.085 sec/60 deg
• @ 7.4v: 0.065 sec/60 deg
• Dimensions: 40.3×20.2×38.7mm (LxWxH)
• Weight: 69.0g
• Operating Temperature: 14° – 122°F (-10° – 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 ? 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 ? 2200 µ second
• Maximum Travel: Appx 130° (900 ? 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
