Savox SB-2274SG-CE Ryan Cavalieri High Speed Brushless Servo (High Voltage) Steel Gear

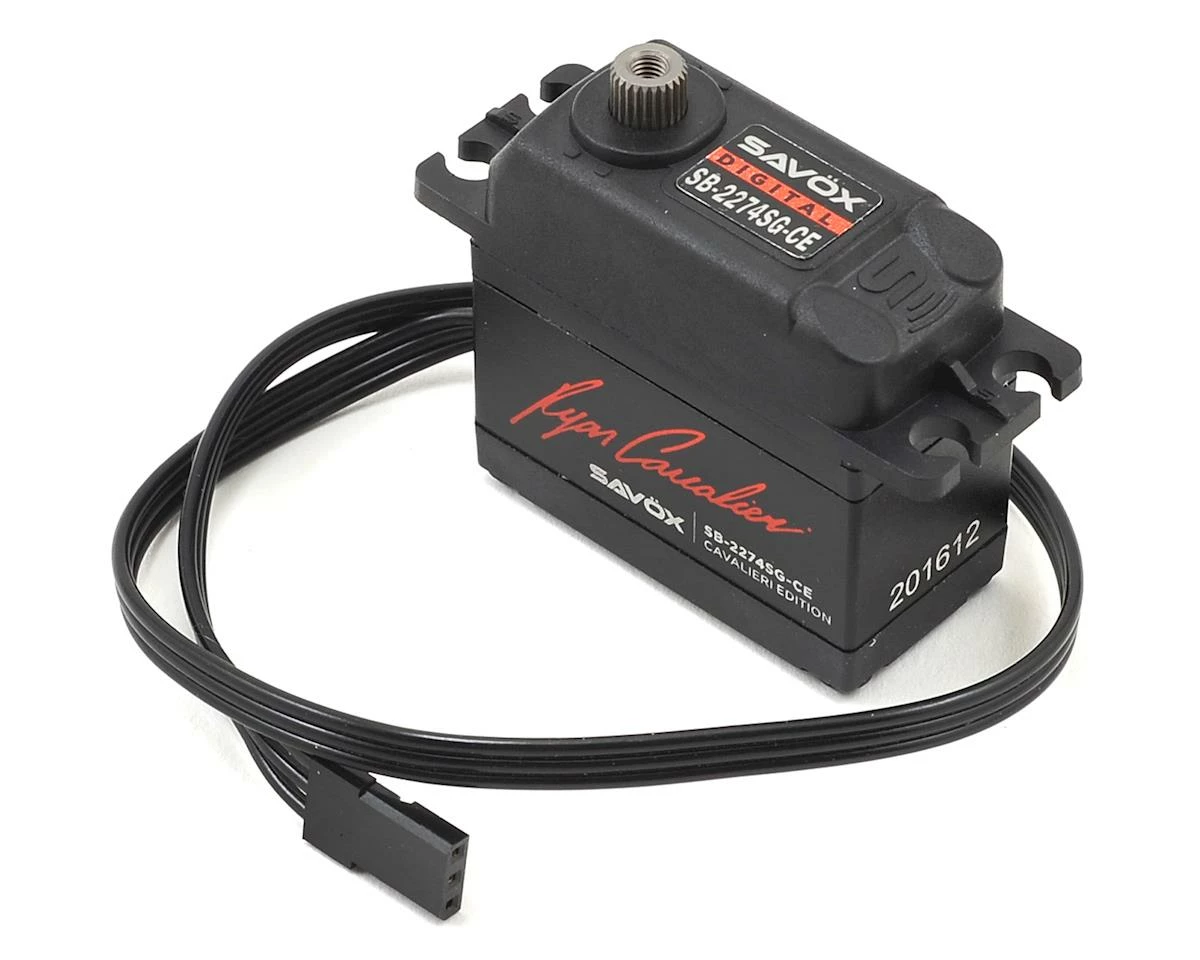

The Savox SB-2274SG-CE Ryan Cavalieri High Speed Brushless Servo was developed to celebrate Savox’s collaboration with multi-time world champion Ryan Cavalieri. This limited edition servo features a black anodized aluminum center case with red and white details, and a 280mm long heavy duty lead wire. It produces 347 oz-in with .08 transit speed at 7.4V, making it an incredibly powerful option for a variety of applications, including 1/8th or 1/10th scale trucks and buggies (electric & nitro). Like the standard SB-2274SG, this servo is also a great choice for giant scale aircraft, boats and helicopters.

Ryan Cavalieri SB-2274SG-CE Features:

• Sleek black aluminum center case with red and white details.
• 280mm heavy duty lead wire perfect for 1/8 scale applications.
• Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
• Super light-weight.
• Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
• The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
• Totally green – from materials to production, these servos are environmentally friendly.
• Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.

*NOTE: Certain combinations of receiver and ESC have been found to cause “Brown Out” issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.

Specifications:

• Speed:
• @7.4V: .08 sec/60
• @6.0V: .105 sec/60
• Torque:
• @7.4V: 347.2 oz-in
• @6.0V: 277.7 oz-in
• Dimensions: 40.3×20.2×38.5mm
• Weight: 69.0g
• Gear: Unique Steel
• Bearing: 2BB
• Case: Full Aluminum
• Spline: 25 Tooth

This product was added to our catalog on December 19, 2016
