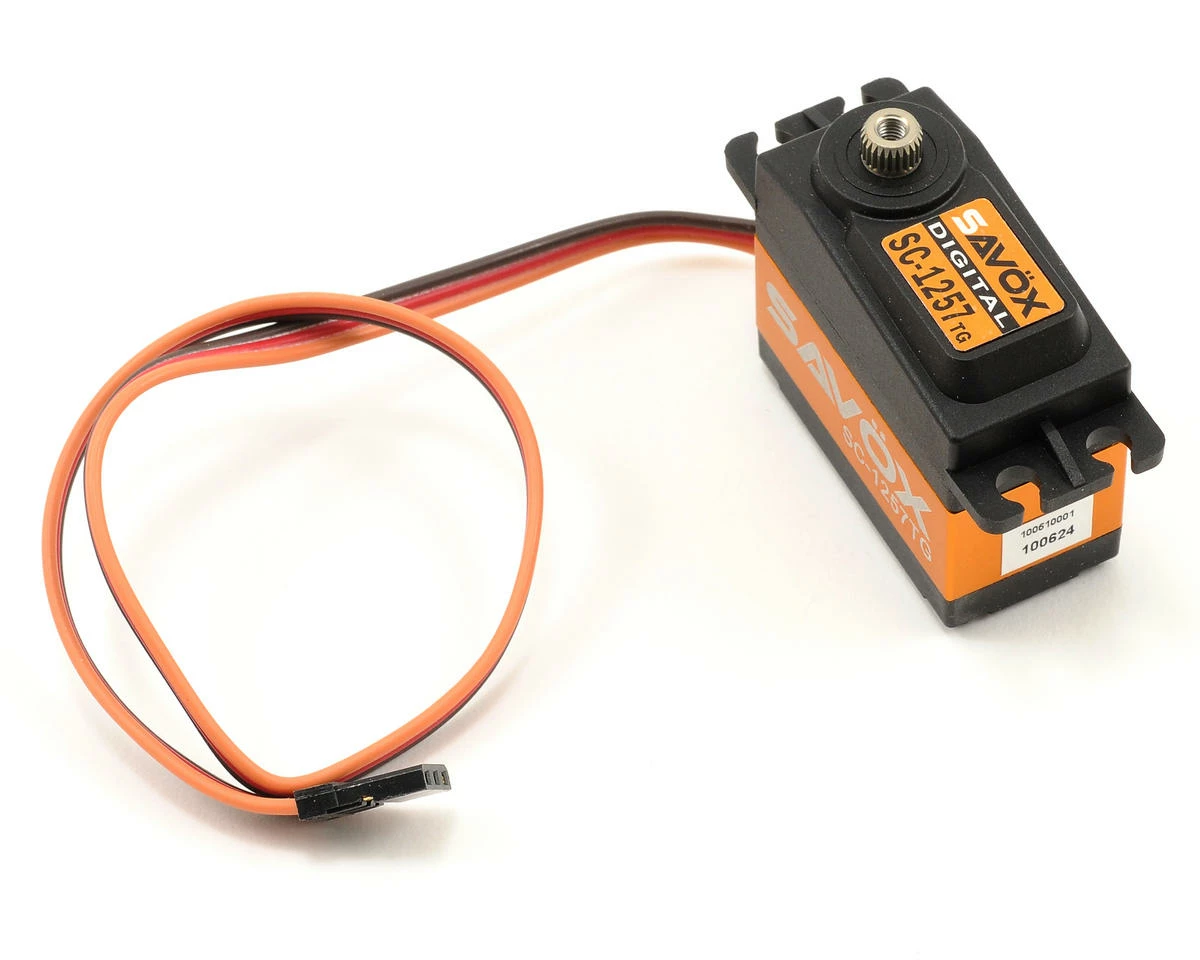

Savox SC-1257TG Standard Digital “Super Speed” Titanium Gear Servo

This is the Savox SC-1257TG Standard Size Coreless Digital Super Speed Titanium Gear Servo. The Savox SC-1257TG combines leading edge technology with super high 12 bit (4096) resolution and Titanium Gears.

Features:

• Light weight
• Coreless Motor provides high speed, incredible efficiency, and low power consumption
• Super strong titanium gears
• The Aluminum Case design not only looks good but also allows for lower operating temperatures.
• Totally Green – from materials to production, these servos are environmentally friendly.
• Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale Buggies.

*NOTE: Certain combinations of receiver and ESC have been found to cause “Brown Out” issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.

Specifications:

• Speed @ 6.0V: 0.07 sec/60°
• Torque @ 6.0V: 138 oz-in / 10 kg-cm
• Weight: 52.4g
• Bearing: Dual
• Type: Standard
• Gear: Titanium and Aluminum
• Case: Aluminum Heatsink

• Output Shaft: 25T Spline (Futaba)
• Case Size (LxWxH): 40.3x20x37.2mm

This product was added to our catalog on August 12, 2010
