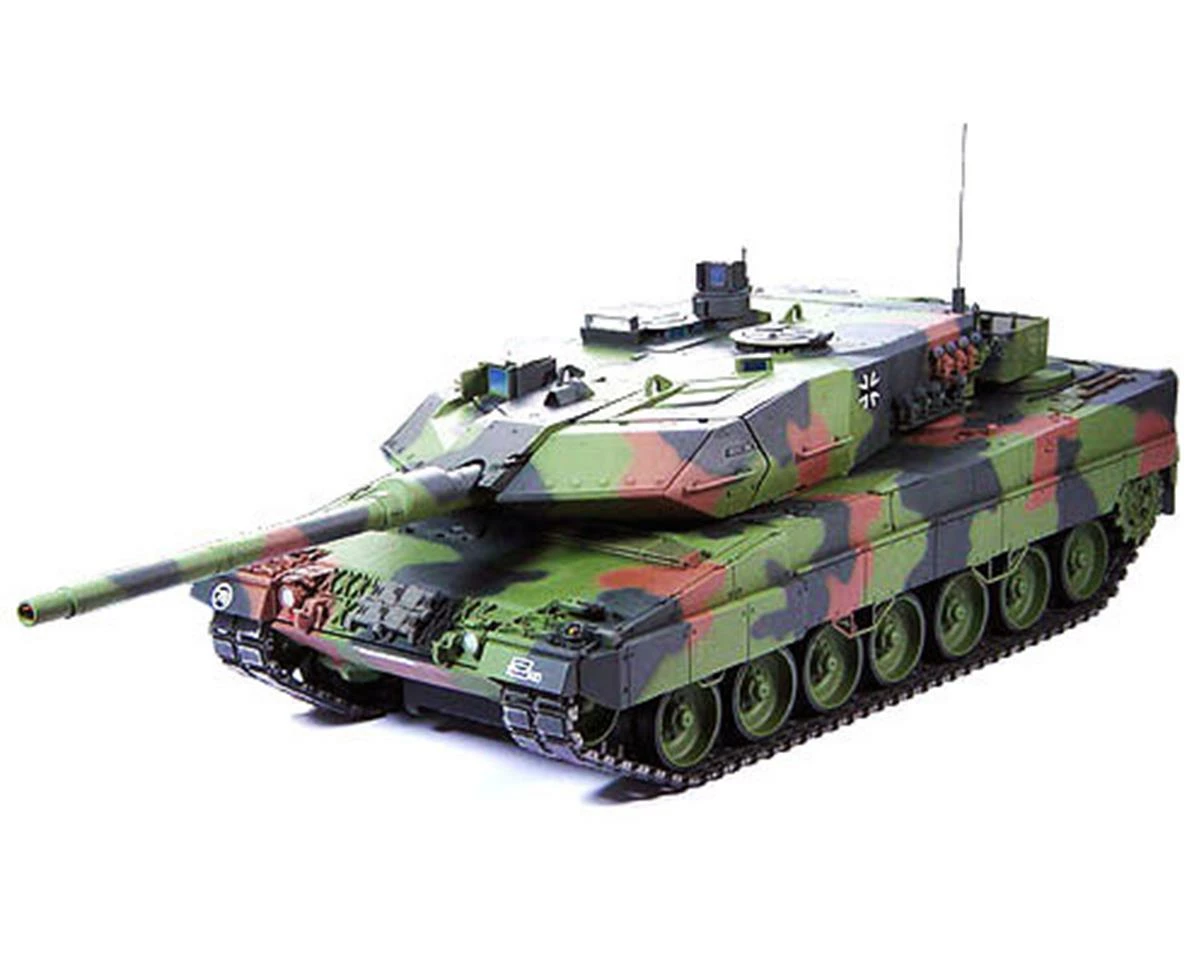

Tamiya Leopard 2 A6 “Full Option” 1/16 Radio Control Tank Kit

This is the Tamiya 1/16 Leopard 2 A6 “Full Option” Tank Kit. Widely recognized as the best modern day Main Battle Tank (MBT), Tamiya introduces the latest German Leopard 2 tank, the Leopard 2 A6, to the 1/16 scale R/C tank series. Tamiya’s biggest R/C tank ever, it’s just like driving the real thing! Used by more than 10 European nations, Germany’s Leopard 2 tanks are a perfect balance of firepower, protection, mobility and availability. With the Leopard 2A5 regarded as the most powerful tank in the world with superior protection and fire power, the latest Leopard 2, the 2A6, features an even more powerful weapon system.

The Leopard 2A5 featured replaceable wedge shaped armor on the turret, improved PERI-R 17 panoramic Commander’s sight with thermal vision, spall liner on the turret interior for protection against splinters, all-electric gun control and stabilization system for easy maintenance and reduced noise, GPS navigation system, electro-pneumatic driver’s hatch and a CCD camera mounted on the rear of tank for high-speed reversing. The Leopard 2A6 featured improved firepower including a 55 caliber 120mm smoothbore main gun utilizing kinetic energy LKE II ammunition for higher muzzle speed and lethality. The 2A6 has been employed by the German 403 tank battalion since March 2001, and is scheduled to replace all German 2A5 tanks by 2006. The use of the 2A6 continues to spread throughout Europe with the Netherlands, Spain and Greece adopting the 2A6 for their main battle tank. With continued improvements, the 2A6 continues to set new standards as the world’s best MBT.

Evolved DMD unit
The T-07 DMD unit provides the 1/16 R/C Leopard 2 A6 with more features than any other Tamiya R/C tank. The T-07 unit matches engine sound (which has been digitally recorded from a real MB873-Ka501 turbo-charged diesel engine) with tank movements, and controls various lightning combinations activated easily with transmitter. Turret rotation, gun elevation and firing sounds also add to the realism of this model. The T-07 unit and 7.2V battery are mounted in the turret for easy and quick accessibility.

Synchronized light and sound effects
The R/C Leopard 2 A6 is equipped with a sound speaker unit mounted at the center of the hull. A xenon flash tube is used to make gun firing more convincing. When fired, main gun recoils and then goes back smoothly to its initial position thanks to a gearbox mounted in the turret. Of course, these actions are coupled with sound effects which have been digitally recorded from the actual tank.

High mobility transmission
The R/C Leopard is powered by 2 high-torque Type 540 motors. A specially designed gearbox allows smooth power transmission at both low and high speeds. This system accurately imitates the transmission of the actual tank. One motor controls forward/backward movement and the other motor allows the tank to turn and rotate. Suspension comes equipped with torsion bars that give this model high mobility.

Smooth turret and gun movement
In order to obtain smooth rotation, the turret ring has been equipped with 20 steel balls. The newly designed system for gun elevation and recoil effect features a servo for more realistic movements. While rotating turret with gun in lowered position, the gun automatically raises and goes back to its initial position to avoid the engine deck, like the actual tank.

7 lighting combinations
The R/C leopard 2 A6 features various workable lights such as headlights, tail lamps, brake lights, black-out lights and rotating light. Model features 7 lighting combinations, 4 for tank during combat operations and 3 during non-combat operations. Main gun and axial machinegun also flash when fired.

Metal parts for accuracy
Kit includes die-cast sprockets and lathe-turned aluminum gun barrel. The double-pin tracks, which are equipped with pads made out of rubber like the actual tank, come pre-assembled. In order to obtain an even more striking feel of realism, mesh of the baskets mounted on rear of turret, and grills on the engine compartment cooling fans have been reproduced with photo-etched parts.

Features:

• Comes with DMD Unit T-07 for real action movement, lighting and digital sound effects
• 2 lighting modes (same as the real tank) for a total of 7 lighting combinations
• Real action movement includes:
• Rotating turret: 360 degrees in 9 seconds (same as the real tank)
• Gun elevation: maximum elevation 20 degrees, maximum depression 9 degrees
• Sharp turning and pivot turning
• Gun automatically reloads and returns to original firing position
• Recoil action after firing main gun
• Engine start-up, shut down, acceleration, discharge etc. digitally recorded from real tank
• Propelled by 2 Type 540 running motors
• The 1/16 Scale Leopard 2 A6 is Tamiya’s biggest R/C tank ever!

Specifications:
Height: 186mm
Rear turret to gun tip: 688mm
Width: 237mm
Weight (fully loaded): 4750g
Overall length: 688mm
Overall width: 237mm
