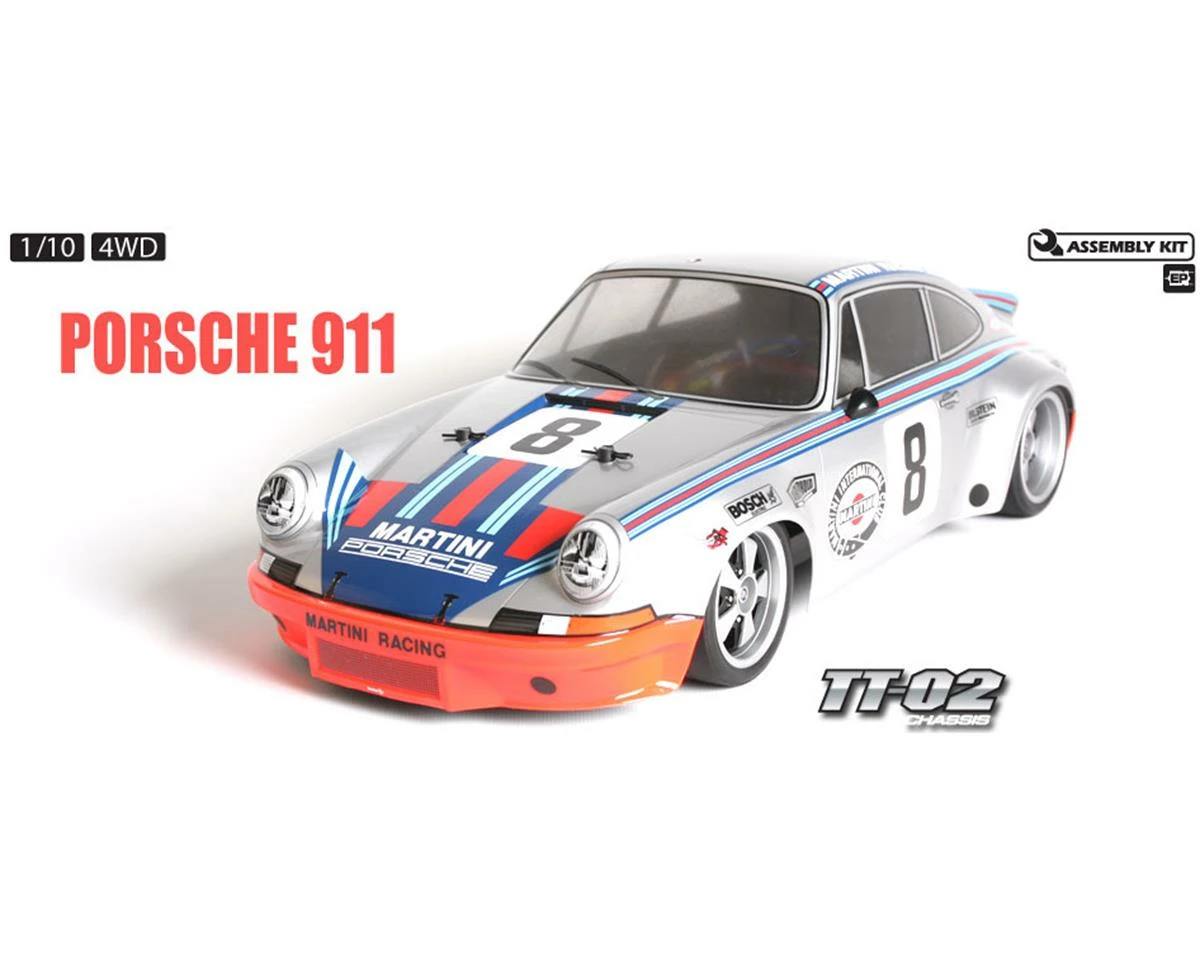

Tamiya Porsche 911 Carrera RSR 1/10 4WD Electric Touring Car Kit (TT-02)

The Tamiya Porsche 911 Carrera RSR TT-02 1/10 4WD Electric Touring Car. This kit was designed to give you the looks of a real legendary Group 4 race car. The polycarbonate body accurately replicates the Porsche 911 Carrera RSR including the distinct wide front and rear fenders. The included decals are in place to help you replicate the the famous race scheme with Martini stripes, numbers, sponsor logos and more. 2-piece wheels are paired with racing slicks to conquer the streets.

Tamiya has reproduced this sleek racing machine in 1/10 scale on the TT-02 entry level touring car chassis. The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.

Features:

• Easy to build entry level kit
• Window masking seal for easy painting
• Highly detailed body with vinyl stickers
• Symmetrical suspension components
• Beveled main chassis for improved cornering clearance
• A wide range of option parts are available to tune and customize the TT-02 chassis.
• Disk brake shaped wheel hubs
• Battery compartment compatible with square shaped batteries
• Separate parts are included to depict side mirror
• 540 type motor
• Includes a Hobbywing THW-1060 Brushed ESC
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers

Specifications:
Scale:  1/10
Length: 432mm
Width: 204mm
Height: 136mm
Wheelbase: 251mm
Front Tire Width/Diameter: 27/67mm
Rear Tire Width/Diameter: 32/67mm
Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: Plastic
Chassis Type: TT-02
Construction Type: Assembly kit
Differential Type: Gear
Drive Type: 4WD
Led Light Buckets: No
Shock Damper: Friction damper
Suspension: Fully independent double wishbone
Terrain Use: On-Road

Needed to Complete:

• 2-Channel radio
• Steering servo
• 7.2V-7.4V battery pack
• Compatible charger
• Polycarbonate paint for body

This product was added to our catalog on December 24, 2021
