Team Associated RC10B6 Builder’s Support Kit
Original price was: $249.99.$66.00Current price is: $66.00.
- Shop with ease, buy with confidence.
- Best price, safe shopping guarantee
- Unbeatable Quality, Unbeatable Value
- Experience the Best Quality
Perfect start for custom dirt oval and no prep drag racing builds!

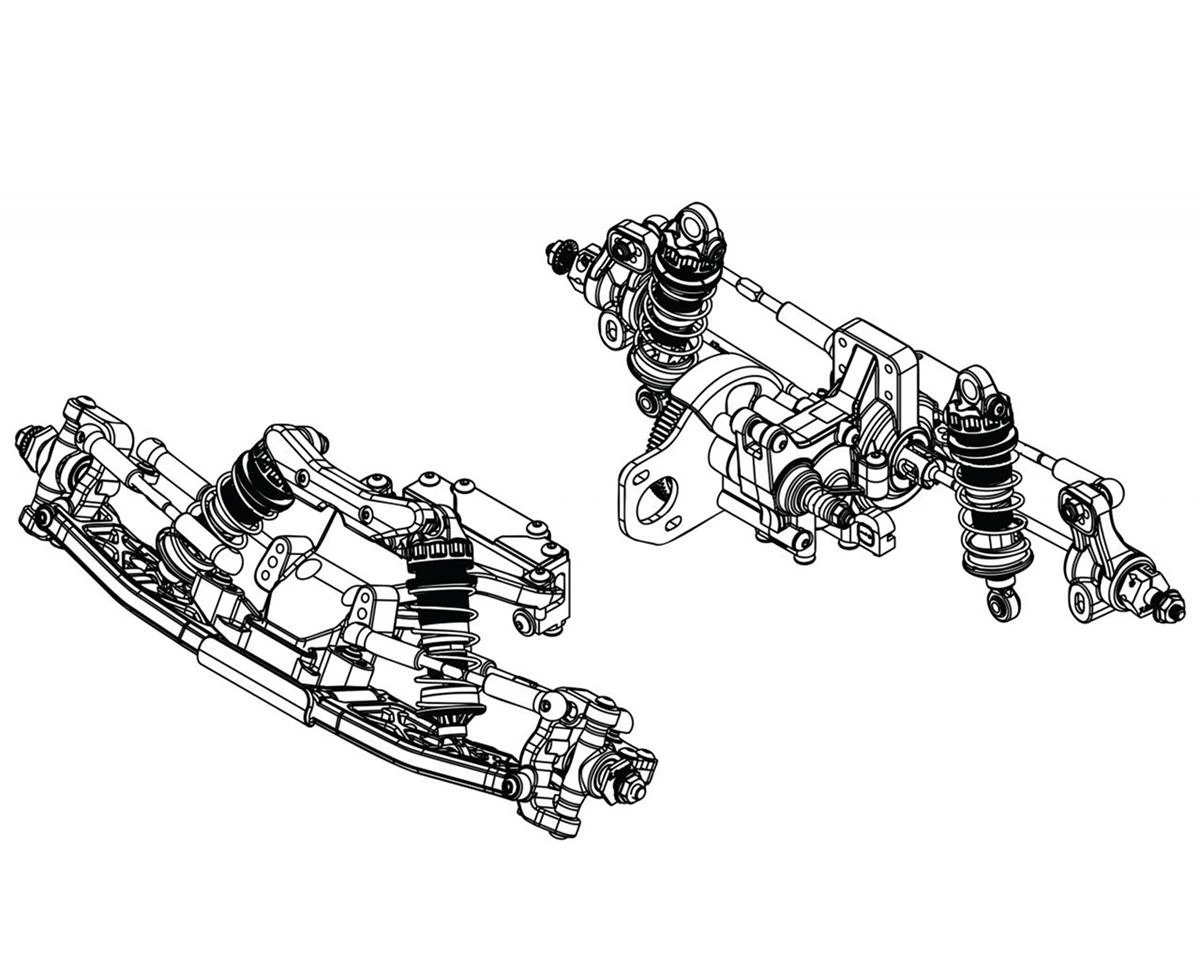

The Team Associated RC10B6 Builder’s Support Kit is a great way to acquire major sub-assemblies with custom builds in mind. The applications are endless for this kit, if it is a sprint car, drag car or 2WD off road buggy this support kit is a great place to start.
Layback and Laydown transmission paired with a ball differential are included. The Octalock slipper clutch with Factory Team LCG slipper pads help to put power down while maintaining traction. Big Bore 12mm threaded shocks for fine tuning. The Support Kit comes with so many options to provide racers, bashers and builders performance ready components.
Features:
- Ball differential included
- Laydown and Layback transmission assemblies included for tuning
- Adjustable differential height to allow drive shaft alignment
- V2 12mm Big Bore threaded aluminum shocks with 24mm bodies and 21mm shafts
- X-ring shock O-rings for lower friction
- V2 12mm shock springs (red front, yellow rear) for most dirt oval and on-road applications
- RC10B6 front end assembly with gull wing front arms and aluminum front axles
- Factory Team ball bearing set included
- 48mm turnbuckles, ball cups, and HD metric ball studs
- Standard pivot rear aluminum arm mounts for use with 67mm CVA bones and RC10B6.1 rear hubs
- Aluminum rear ball stud mount with three link positions for maximum adjustability and added strength
- Lightweight aluminum one-piece top shaft
- RC10B6.3 servo mounting system with aluminum chassis mounts and molded brace with transponder mounting location
- Octalock spur gear and 19mm Octalock LCF pads
- 2.5mm thick machined shock pistons
- Blue aluminum shock bushings
- Molded wire clips for wire organization
- +1 carbon fiber steering arms
- Black low profile serrated wheel nuts
- 3mm I.D. molded plastic spacers for ball stud and shiming
- 7mm aluminum clamping wheel hexes
- Fasteners and hardware included
- RC10B6 based dirt oval or drag conversion kit
- Conversion-specific body for dirt oval or drag application
- 1:10 scale electric motor and electronic speed control
- 7.4V-7.6V 2S LiPo shorty battery
- Compatible battery charger
- 2-channel surface transmitter, 2-channel receiver, and steering servo
- Spray paint for body
- Silicone shock fluid
- 1:10 scale wheels and tires (application specific)
- Carbon-fiber front and rear shock towers
- Aluminum chassis and molded side rails
- Polycarbonate body and rear wing
- Rear suspension arms
- Rear wing mount assembly
- Front wing and front wing mount assembly
- Battery mounting strap and hardware
- Set screw and flanged nut rear arm shock mounting hardware
- Shock fluid
- Aluminum ball stud washers
- Aluminum ESC tray
This product was added to our catalog on July 12, 2021
