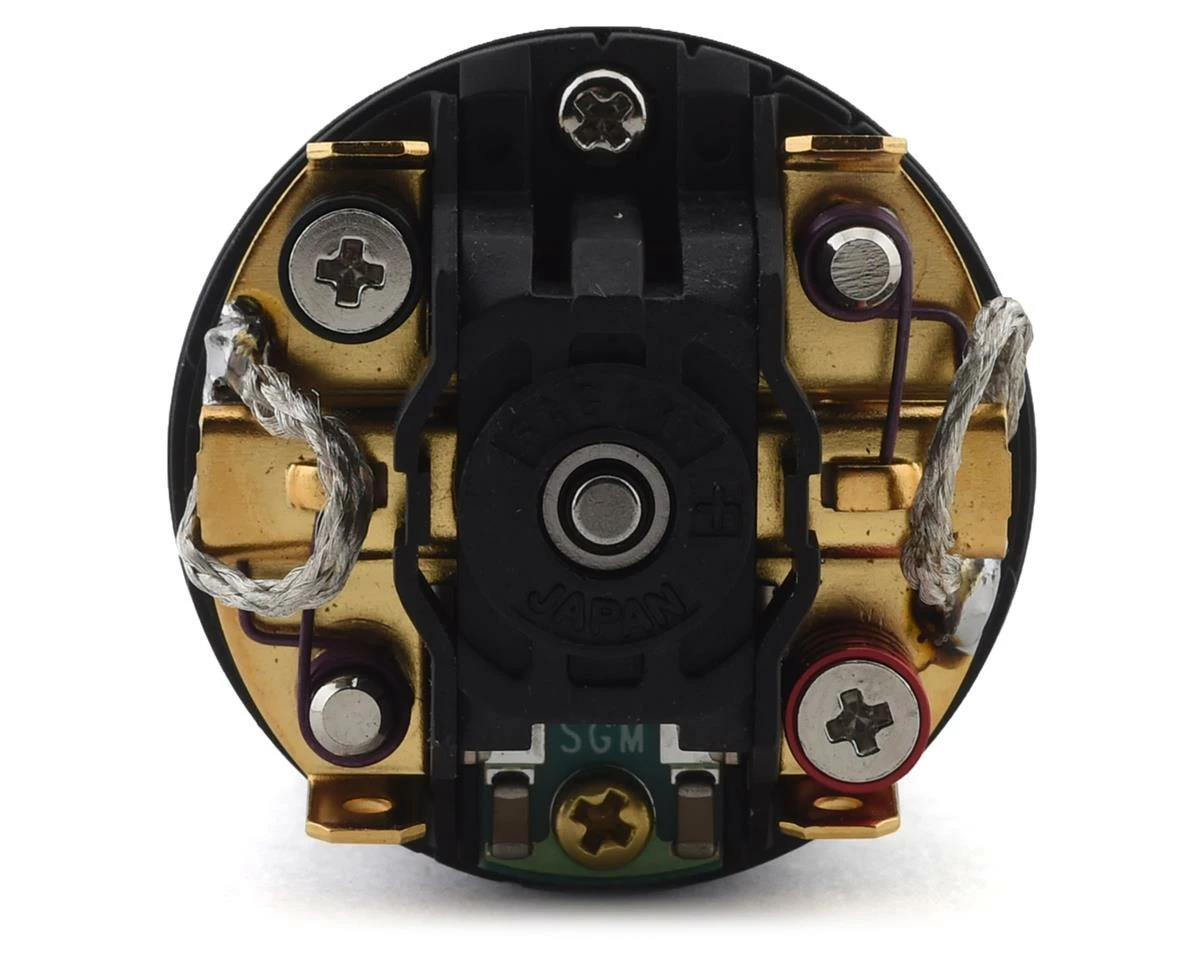

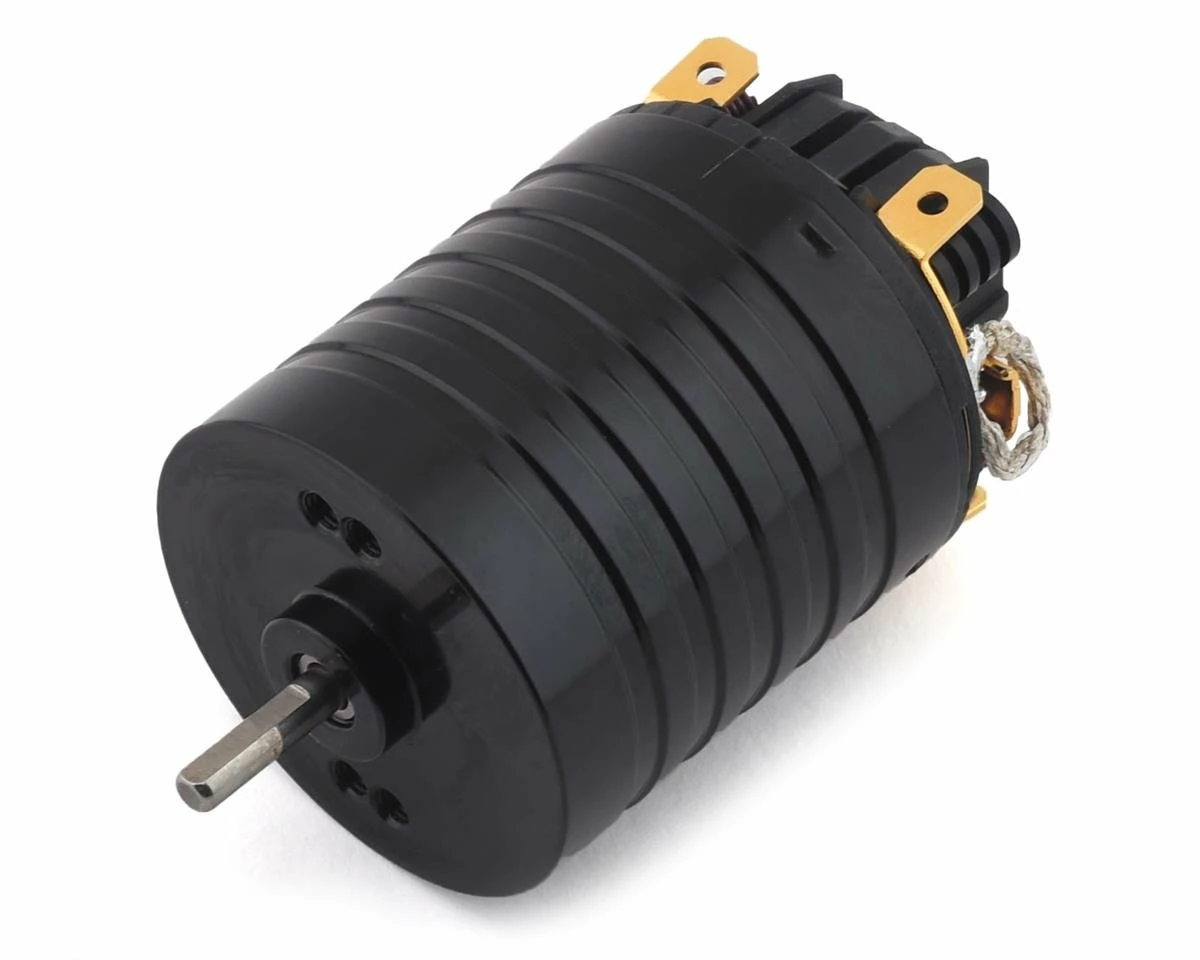

Team Brood Doomsday 540 FS-2 Handwound 5 Segment 540 Crawling Motor (20T)

Team Brood Doomsday 540 FS-2 Handwound 5 Segment 540 Crawling Motor (20T) - Image 2

Team Brood Doomsday 540 FS-2 Handwound 5 Segment 540 Crawling Motor (20T) - Image 3

Team Brood Doomsday 540 FS-2 Handwound 5 Segment 540 Crawling Motor (20T)

Original price was: $99.99.Current price is: $68.00.

SKU: 1266939 Categories: 1/10 scale, Electric motors, Electric motors & esc's, Electronics Tag: Team Brood

Shop with ease, buy with confidence.
Best price, safe shopping guarantee
Unbeatable Quality, Unbeatable Value
Experience the Best Quality

Description
Reviews (0)

The Team Brood Doomsday 540 FS-2 Handwound 5 Segment Dual Magnet 540 Crawling Motor was designed to make some serious torque. Built upon Team Brood’s dual magnet design this motor not only features killer torque specs but it also has superior braking and holding power. The can was CNC machined for tighter tolerances and features a ribbed heatsink design. The Doomsday motors use a 5-Slot Straight Armature for the smoothest startup possible for your truck. Package includes one brushed motor.

Team Brood builds every motor from the ground up. The Doomsday armatures are hand wound, hand shimmed, given precise brush hood alignment, factory broken in and then dyno tested. These motors are truly made to squeeze out as much horsepower as possible.

Features:

General:

Dual Magnet Can with TDK FB9 magnets – Maximizes torque and braking
1.4mm thick Black E-Coated Can – Strengthens the magnetic field for maximum torque and braking with a durable finish
Onboard Surface Mount Capacitors Reduces radio interference caused by electric motors
Adjustable Timing – Fine tune the motors powerband to optimal settings
Rebuildable – Can be rebuilt to provide maximum power and longevity
Dual Precision Ball Bearings – Reduces friction provides increased efficiency and power
Aluminum Heatsinks – Additional cooling provides for a more efficient motor
Standup Brushes – Long lasting performance brushes
Springs – Optimal tension springs

Hand-Wound Armature:

Processed from start to finish using the state of the art techniques, materials and equipment.
Pattern wound by the best winders in the world using the highest grade copper wire
Welded using high-tech silver brazing rod
Dipped with the aerospace grade epoxy resin
Precision epoxy balanced
Tested with precision meters
Engraved with the wind on the armature shaft

Build Features:

Diamond Trued Commutator – Provides a perfectly round cut
Zapped Magnets – Assures magnets are at full and even strength
Cleaned and Lubed Bearings – Allows for the smoothest operation
Precision-Spaced Armature – Centers the Armature in the magnetic field with minimal play
Precision-Measured Springs – Assures both springs are at the optimal tension
Aligned Brush Hoods – Allows the brushes to make full contact allowing even wear and max power
Tested – Each component is tested on calibrated
Dyno-Tuned – Guarantees the motor is producing its maximum power, rpm and torque
Fully Broken-In – Ready to install and run
30 Day Limited Warranty
