- Updated Throttle/Brake Control Compared to the V4
- Lower Case Height than the V4 for Lower Center of Gravity
- Compatible with Sensored/Sensorless Brushless Motors
- Data Analysis Capability(RPM, Low voltage and ESC temperature)

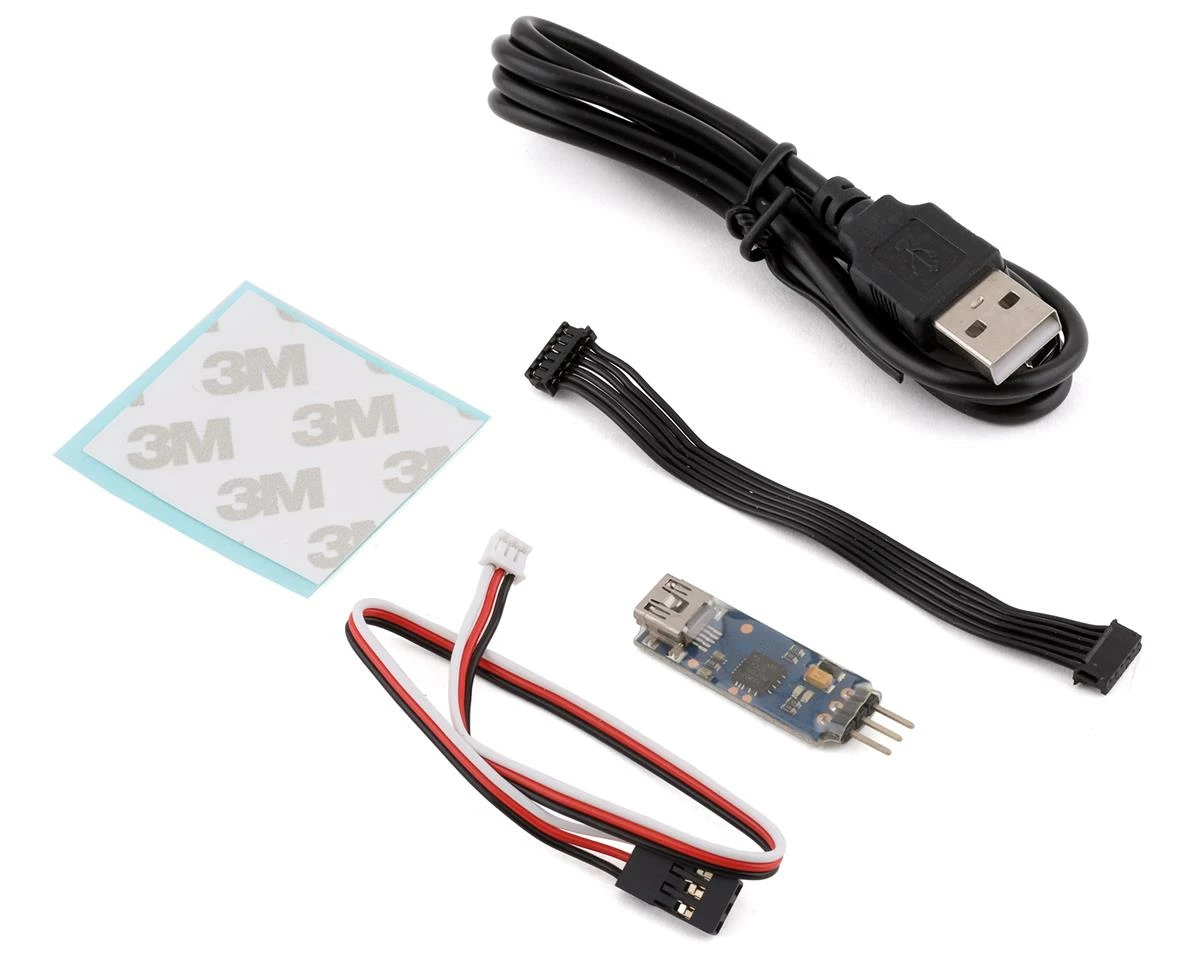

- HotWire PC Interface for Advanced Programming and Updating
- Easily Programming through the Program card(not included in the package)
- Built-in one touch On/Off switch with LED
- Built-in Low voltage cut-off, Overheat protection and signal loss protection
- Hardware:
- Upgraded version of higher ampere FET to low the hardware internal resistance with more output power. Besides, its lower IR can lower the speed control working temperature by around 6%
- With more open line area to dissipate more heat out in term to lower the speed control temperature by extra 6%
- The speed control casing only has 17mm height with 2mm lower that having better lower gravity
- Extra ~6% weight lighter
- Support Ch3/Ch4 Aux Input signal to control different item function values
- Updated pcb layout design with better stability and reliability
- Software:
- With Ch3/Ch4 Aux function to control one of the below pre-defined control item function
- (e.g. IP-Limiter, Throttle Rate, RPM Lock, Initial Brake, Drag Brake, Brake Force, I-BK-RSP, Brake Rate,
- Boost Timing, Boost Trig LVL, Boost Trig Rate, Turbo Timing, Turbo Delay, Turbo On Rate)
- Optimize the brake function with better linearity
This product was added to our catalog on March 10, 2021
