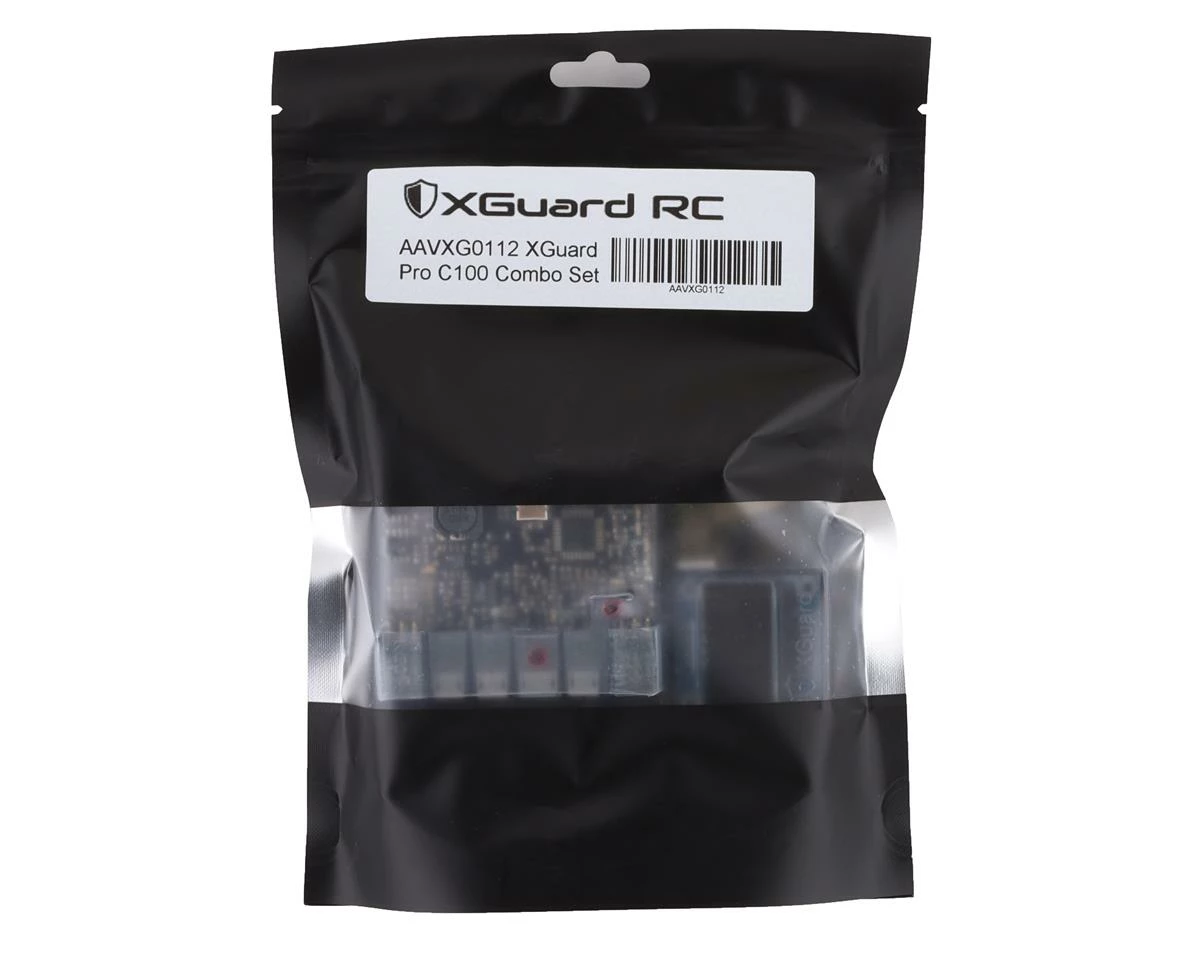

XGuard RC XGuard Pro C100 Power Protection Backup System Combo w/Remote Board, XStrobe Light, & XLog Display

The XGuard RC XGuard Pro Power Protection Backup systems is the ultimate insurance policy for any aircraft that you own to aid in recovery and landing successfully in the event of a radio power system failure. Offered in two sizes, “C82” and “C100” refer to the size of the capacitance that the capacitors deliver (Farads). The C100 is best used for larger aircraft such as gasoline powered airplanes, or large gas or turbine powered helis. Essentially any aircraft which are generally flown further away – and thus – need more time to return back to the landing spot safely.

• Backup Power Pack with 100 Farad capacitors
• Overvoltage protector
• Reverse polarity protector
• Short circuit protector
• Servo back EMF protector
• Static electricity protector
• 200 event logger
• Two Telemetry ports. One for Mikado and one for Spektrum. Optional expansion modules for Futaba S-BUS, Jeti and FrSKY
• Fault tolerant design defaults to fully connected in case of malfunction
• One Remote Board port for controlling the system from the remote board (included in combo)
• Strobe Alarm Light port to connect the Strobe light (XStrobe – included in combo) or  optional Sonic alarm (XBuzzer)
• Four power Ports:
• Input: Master & slave from ESC
• Output: Master & slave to receiver, or flybarless gyro system
• Slow current draw ramp-up to prevent overwhelming the ESC with inrush charging current.
• Protection against over-charging the supercapacitors above 8.1V for long term supercapacitor durability
• Pin-type Servo Connectors to avoid soldered wires that can fatigue and break
• Real-Time Operating System with mission Critical Coding will keep on attending and reacting to alarm events regardless of other functions working at the same time.

• ESC mode for small undervoltage sensing from ESC’s BEC
• BATT mode for receiver battery empty sensing when voltage drops to 5.5V
• Daisy chainable for large Aircraft allows to put several daisy chained XGuards to add capacity

• Place XGuard anywhere hidden in the aircraft and control it from the included XRemote board
• It has all the same indicator LEDs and Buttons plus additional features
• Hot pluggable

• Photo Camera-type strobe lights
• Built-in voltage booster to work even when caps are low in voltage
• Extremely low consumption via burst compression
• PC Board thickness so ceramic components don’t crack from vibration or torsion and screw placement
• Perfect visual warning that can be seen from great distances due to powerful flash diode LEDs

• Up to 200 events stay in permanent memory until another event happens in a different power up.
• Log Monitor LIVE vs LOG
• Hot pluggable

• (1) XGuard Pro C100 Backup Power System
• (1) XGuard Remote Board
• (1) XGuard Strobe Light
• (1) XLog Display Screen
